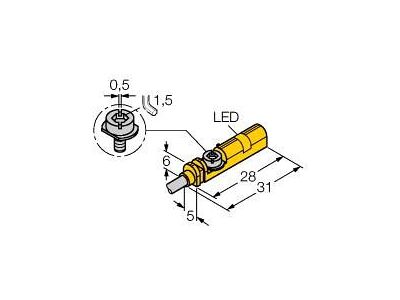

BIM-UNT-AG41X/S1139/S1160 7M Magnetic Field Sensor, For Pneumatic Cylinders

BIM-UNT-AG41X/S1139/S1160 7M

Magnetic Field Sensor, For Pneumatic Cylinders, Operating voltage 10…55 VDC, Cable length 7 m, For T-groove cylinders without mounting accessories, Optional accessories for mounting on other cylinder designs, One-hand mounting possible, Stable mounting, Magneto-resistive sensor, Long overtravel, For large cylinders, Irradiation-crosslinked TPU cable for applications in welding areas, DC 2‐wire, 10…55 VDC, Polarized version, NO contact, Cable connection

  • SKU
    4047101195712
  • Manufacturer code
    4685767
  • Type of actuation
    Magnet
  • Type of electric connection
    Cable
  • Type of switching output
    2-wire
  • Width sensor
    5 mm
  • Height of sensor
    6 mm
  • Length of sensor
    28 mm
  • Construction type housing
    Cuboid
  • Housing material
    Plastic
  • Ambient temperature
    -25 - 70 °C
  • Rated supply voltage at DC
    10 - 55 V
  • Voltage type
    DC
  • Cross-/short circuit identification possible
    true
  • Degree of protection (IP)
    IP68
  • Type of switch function
    NO contact
  • Cable length (m)
    7
  • Manufacturer Turck

Product attachments

file-37597-98a5329b38e815e864f24d9505b4c1a4.pdf (PDF, 710.35 kB)
