BIM-EG08-AN6X Magnetic Field Sensor, Magnetic-inductive Proximity Sensor

BIM-EG08-AN6X

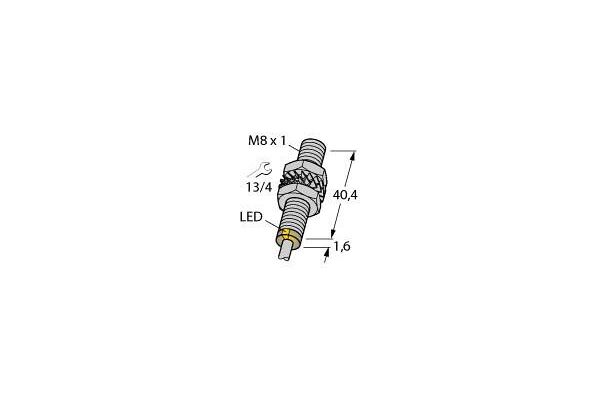

Magnetic Field Sensor, Magnetic-inductive Proximity Sensor, Operating voltage 10…30 VDC, Rated switching distance 78 mm, Cable length 2 m, M8 × 1 threaded barrel, Stainless steel, 1.4427 SO, Rated operating distance 78 mm with DMR31-15-5 magnet, DC 3‐wire, 10…30 VDC, NO contact, NPN output, Cable connection

  • SKU
    4047101156195
  • Manufacturer code
    4621300
  • Type of actuation
    Magnet
  • Type of electric connection
    Cable
  • Type of switching output
    NPN
  • Length of sensor
    41.6 mm
  • Construction type housing
    Cylinder, screw-thread
  • Housing material
    Stainless steel
  • Ambient temperature
    -25 - 70 °C
  • Rated supply voltage at DC
    10 - 30 V
  • Voltage type
    DC
  • Cross-/short circuit identification possible
    true
  • Degree of protection (IP)
    IP67
  • Diameter sensor
    8 mm
  • Switching distance
    78 mm
  • Type of switch function
    NO contact
  • Type of switching output
    NPN
  • Cable length (m)
    2
  • Manufacturer Turck

Product attachments

file-35529-5fc37b5b0292d44af74a8ecc3233c661.pdf (PDF, 290.79 kB)
