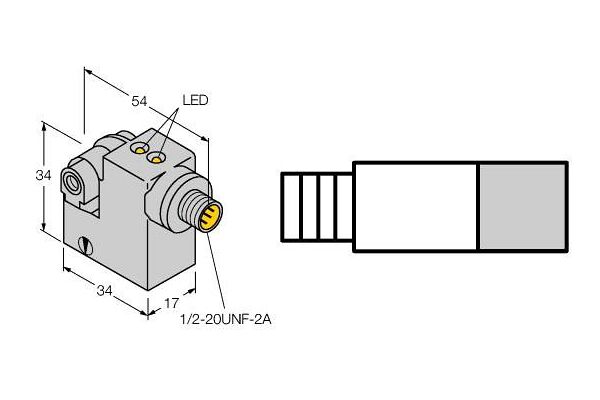

Magnetic Field Sensor, For Pneumatic Cylinders, Operating voltage 20…250 VAC, Rectangular, height 34 mm, Metal, GD-Zn, Magnetic-inductive sensor, AC 2-wire, 20…250 VAC, NO contact, Connector, 1/2"

SKU

4047101001228
Manufacturer code

13471
Type of actuation

Magnet
Type of electric connection

Plug-in connection
Width sensor

17 mm
Height of sensor

34 mm
Length of sensor

34 mm
Construction type housing

Cuboid
Housing material

Other
Ambient temperature

-25 - 70 °C
Voltage type

AC
Degree of protection (IP)

IP67
Rated supply voltage at AC 50 Hz

20 - 250 V
Rated supply voltage at AC 60 Hz

20 - 250 V
Type of switch function

NO contact

Manufacturer Turck
