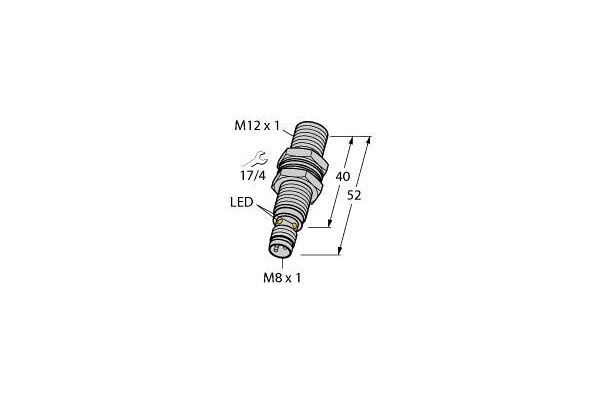

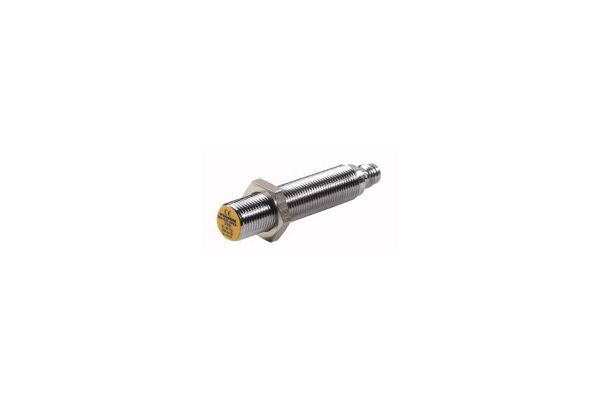

BI4U-M12-AN6X-V1131 Inductive Sensor, With Extended Switching Distance

BI4U-M12-AN6X-V1131

Inductive Sensor, With Extended Switching Distance, Operating voltage 10…30 VDC, Rated switching distance 4 mm, Flush, M12 × 1 threaded barrel, Chrome-plated brass, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Large switching distance, Recessed mountable, DC 3-wire, 10…30 VDC, NO contact, NPN output, M8 x 1 male connector

  • SKU
    4047101131208
  • Manufacturer code
    1635430
  • Length of sensor
    52 mm
  • Diameter sensor
    12 mm
  • Flush / Non-flush
    Concise
  • Switching distance
    4 mm
  • Suitable for safety functions
    false
  • Type of switch function
    Normally open contact
  • Type of switching output
    NPN
  • Type of electric connection
    Plug-in connection
  • Type of actuation
    Metallic Target
  • Construction type housing
    Cylinder, screw-thread
  • Coating housing
    Chromium-plated
  • Supply voltage
    10 - 30 V
  • Voltage type
    DC
  • Switching frequency
    3000 Hz
  • Compression-resistant
    false
  • Housing material
    Metal
  • Type of switching output
    NPN
  • Flush / Non-flush
    Flush
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-50256-71bdb07b65e2d3d31f845668f5c4706a.pdf (PDF, 994.7 kB)
