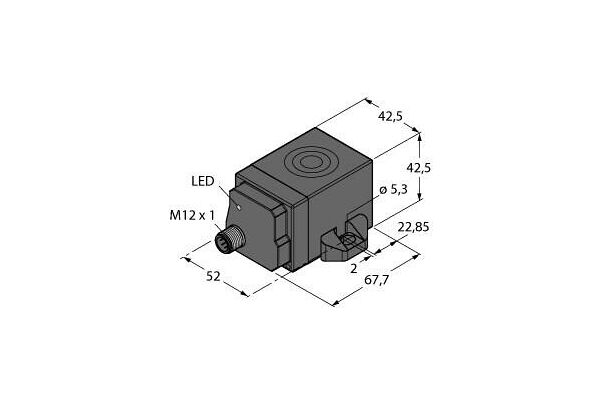

NI50U-Q42TWD-VP6X-H1141 Inductive Sensor, For the Food Industry

NI50U-Q42TWD-VP6X-H1141

Inductive Sensor, For the Food Industry, Operating voltage 10…30 VDC, Rated switching distance 50 mm, Non-flush, Rectangular, height 42.5 mm, Active face on top, Plastic, PA12-GF30, Factor 1 for all metals, Resistant to magnetic fields, Auto-compensation protects against pre-damping, Partially embeddable, Extended temperature range, High protection class IP69K for harsh environments, Protection against all common acidic and alkaline cleaning agents, Laser engraved label, permanently legible, Suitable for applications in the food industry, DC 4-wire, 10…30 VDC, Changeover contact, PNP output, M12 x 1 male connector

  • SKU
    4047101264326
  • Manufacturer code
    1538306
  • Length of sensor
    67.7 mm
  • Flush / Non-flush
    Not flat
  • Switching distance
    50 mm
  • Suitable for safety functions
    false
  • Type of switch function
    Change-over contact
  • Type of switching output
    PNP
  • Type of electric connection
    Plug-in connection
  • Type of actuation
    Metallic Target
  • Construction type housing
    Cuboid
  • Coating housing
    Other
  • Supply voltage
    10 - 30 V
  • Voltage type
    DC
  • Switching frequency
    250 Hz
  • Compression-resistant
    false
  • Width sensor
    42.5 mm
  • Height of sensor
    42.5 mm
  • Housing material
    Plastic
  • Type of switching output
    PNP
  • Flush / Non-flush
    Non-flush
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-50027-13e8e3890a1e085dedafc11036b53058.pdf (PDF, 316.17 kB)
