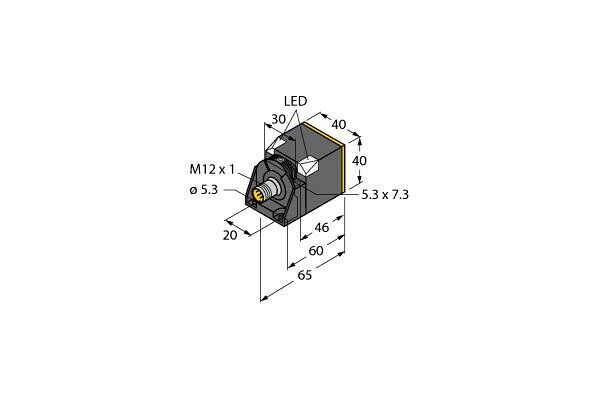

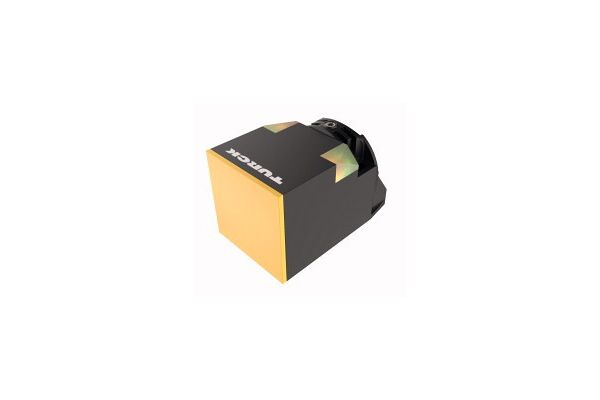

Inductive Sensor, With Extended Switching Distance, Operating voltage 10…30 VDC, Rated switching distance 40 mm, Non-flush, Rectangular, height 40 mm, Variable orientation of active face in 5 directions, Plastic, PBT‐GF30‐V0, High luminance corner LEDs, Optimum view on supply voltage and switching state from any position, Factor 1 for all metals, Increased switching distance, Protection class IP68, Large coverage, Resistant to magnetic fields, Extended temperature range, High switching frequency, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 x 1 male connector
- SKU4047101079098
- Manufacturer code1623641
- Length of sensor65 mm
- Flush / Non-flushNot flat
- Switching distance40 mm
- Suitable for safety functionsfalse
- Type of switch functionNormally open contact
- Type of switching outputPNP
- Type of electric connectionPlug-in connection
- Type of actuationMetallic Target
- Construction type housingCuboid
- Coating housingOther
- Supply voltage10 - 30 V
- Voltage typeDC
- Switching frequency250 Hz
- Compression-resistantfalse
- Width sensor40 mm
- Height of sensor40 mm
- Housing materialPlastic
- Type of switching outputPNP
- Flush / Non-flushNon-flush
- Connector gendermale
- Manufacturer Turck
