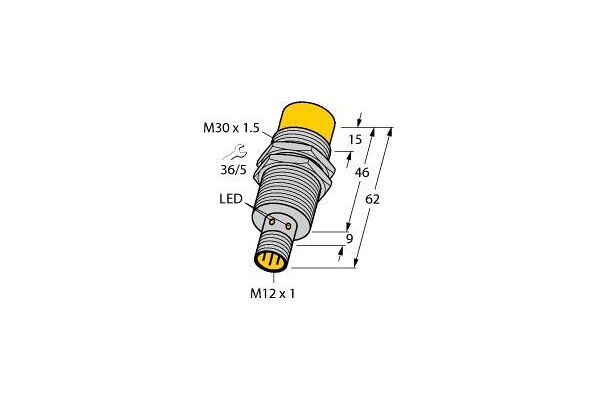

Inductive Sensor, With Extended Switching Distance, Operating voltage 10…30 VDC, Rated switching distance 30 mm, Non-flush, M30 × 1.5 threaded tube, Stainless steel, 1.4301, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Large switching distance, Integrated protection against predamping, Little metal-free spaces, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 x 1 male connector

SKU

4047101135589
Manufacturer code

1646632
Length of sensor

62 mm
Diameter sensor

30 mm
Flush / Non-flush

Not flat
Switching distance

30 mm
Suitable for safety functions

false
Type of switch function

Normally open contact
Type of switching output

PNP
Type of electric connection

Plug-in connection
Type of actuation

Metallic Target
Construction type housing

Cylinder, screw-thread
Supply voltage

10 - 30 V
Voltage type

DC
Switching frequency

1000 Hz
Compression-resistant

false
Housing material

Metal
Type of switching output

PNP
Flush / Non-flush

Non-flush
Connector gender

male

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Turck
