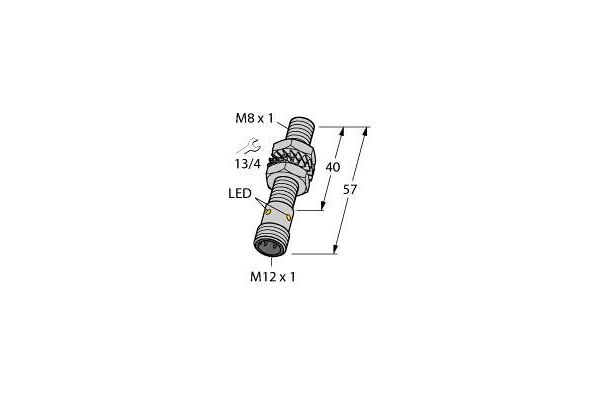

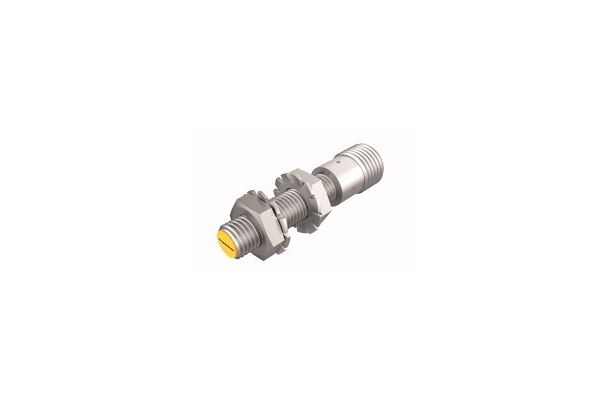

BI1.5-EG08WD-AN6X-H1341 Inductive Sensor, For Harsh Environments

BI1.5-EG08WD-AN6X-H1341

Inductive Sensor, For Harsh Environments, Operating voltage 10…30 VDC, Rated switching distance 1.5 mm, Flush, M8 × 1 threaded barrel, Stainless steel, 1.4404, Protection class IP68/IP69K, PVDF front cap, Resistant to cleaning agents, Resistance to cooling lubricants, cutting and grinding oils, Viton O-ring seal, Suitable for applications in the food industry, DC 3-wire, 10…30 VDC, NO contact, NPN output, M12 x 1 male connector

  • SKU
    4047101152432
  • Manufacturer code
    4602211
  • Length of sensor
    57 mm
  • Diameter sensor
    8 mm
  • Flush / Non-flush
    Concise
  • Switching distance
    1.5 mm
  • Suitable for safety functions
    false
  • Type of switch function
    Normally open contact
  • Type of switching output
    NPN
  • Type of electric connection
    Plug-in connection
  • Type of actuation
    Metallic Target
  • Construction type housing
    Cylinder, screw-thread
  • Supply voltage
    10 - 30 V
  • Voltage type
    DC
  • Switching frequency
    3000 Hz
  • Compression-resistant
    false
  • Housing material
    Metal
  • Type of switching output
    NPN
  • Flush / Non-flush
    Flush
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-35343-cfabd3a76d316f3f63ee95912f159bbf.pdf (PDF, 1.01 MB)
