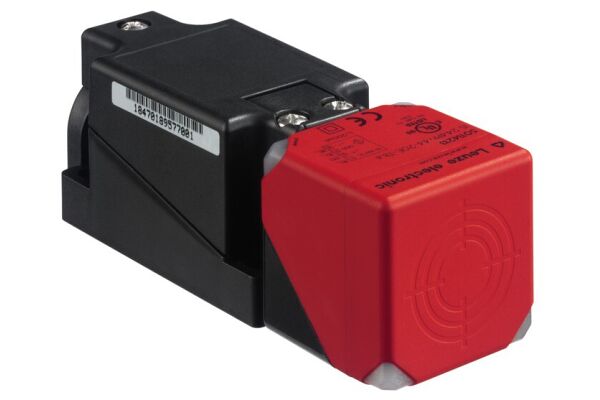

IS 244PP/44-40N-TB.4 Inductive switch

IS 244PP/44-40N-TB.4
An inductive switch with a cubic design, featuring antivalent digital switching outputs and a plastic housing.
  • SKU
    2110-50114214
  • Manufacturer code
    50114214
  • Length of sensor
    118 mm
  • Flush / Non-flush
    Not flat
  • Switching distance
    32.4 mm
  • Suitable for safety functions
    false
  • Type of switching output
    PNP
  • Type of electric connection
    Clamp
  • Number of semiconductor outputs with signalling function
    2
  • Number of contact energized outputs with signalling function
    0
  • Number of protected semiconductor outputs
    0
  • Number of protected contact energized outputs
    0
  • Type of actuation
    Other
  • Type of interface
    None
  • Type of interface for safety communication
    None
  • Construction type housing
    Cuboid
  • Coating housing
    Other
  • Cascadable
    false
  • SIL according to IEC 61508
    None
  • Performance level according to EN ISO 13849-1
    None
  • Max. output current at protected output
    0 mA
  • Supply voltage
    10 - 30 V
  • Rated control supply voltage DC
    10 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • Switching frequency
    180 Hz
  • With monitoring function downstream switching devices
    false
  • Housing material
    Plastic
    Plastic
    Plastic
    Plastic
  • Compression-resistant
    false
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Width sensor
    40 mm
  • Height of sensor
    40 mm
  • Supplyoltage (V)
    10 ... 30
  • Design
    Cubic
  • Switching frequency (Hz)
    180
  • Special version
    Antivalent
  • Manufacturer Leuze

Product attachments

DS_IS-244PP-44-40N-TB-4_eng_50114214 (LINK)
