IS 288MP/4NO-1E5

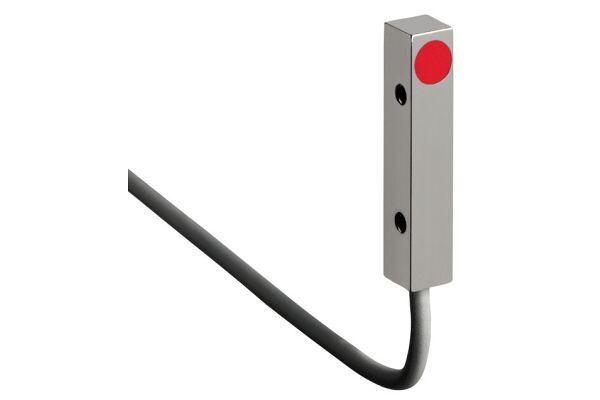

Compact cubic inductive switch with a metal housing designed for embedded installation.

SKU

2110-50112885
Manufacturer code

50112885
Length of sensor

40 mm
Flush / Non-flush

Concise
Switching distance

1.2 mm
Suitable for safety functions

false
Type of switch function

Normally open contact
Type of switching output

PNP
Type of electric connection

Cable
Number of semiconductor outputs with signalling function

1
Number of contact energized outputs with signalling function

0
Number of protected semiconductor outputs

0
Number of protected contact energized outputs

0
Type of actuation

Other
Type of interface

None
Type of interface for safety communication

None
Construction type housing

Cuboid
Coating housing

Other
Cascadable

false
SIL according to IEC 61508

None
Performance level according to EN ISO 13849-1

None
Max. output current at protected output

0 mA
Supply voltage

10 - 30 V
Rated control supply voltage DC

10 - 30 V
Voltage type

DC
DC
DC
DC
Switching frequency

3500 Hz
With monitoring function downstream switching devices

false
Housing material

Metal
Metal
Metal
Metal
Compression-resistant

false
Explosion safety category for gas

None
Explosion safety category for dust

None
Width sensor

8 mm
Height of sensor

8 mm
Supplyoltage (V)

10 ... 30
Design

Cubic
Switching frequency (Hz)

3500

Manufacturer Leuze
