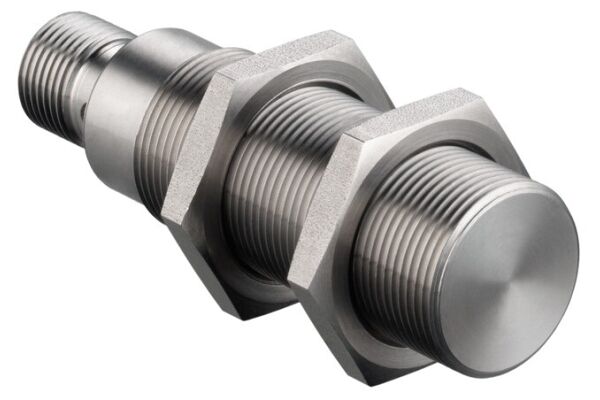

Typ. operating range limit Sn: 20 mm; Operating range Sa: 0 ... 16.2 mm; Special version: Reduction factor 1; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output 1: Transistor, PNP, NO (normally open); Switching frequency: 200 Hz; Connection: Connector, M12, 4 -pin; Design, housing: Cylindrical; Thread size: M18; Dimensions: 18 mm x 63.5 mm; Type of installation: Non-embedded; Housing material: Stainless steel; Certifications: c UL US

SKU

2110-50109734
Manufacturer code

50109734
Length of sensor

63.5 mm
Diameter sensor

18 mm
Flush / Non-flush

Not flat
Switching distance

16.2 mm
Suitable for safety functions

false
Type of switch function

Normally open contact
Type of switching output

PNP
Type of electric connection

Connector M12
Number of semiconductor outputs with signalling function

1
Number of contact energized outputs with signalling function

0
Number of protected semiconductor outputs

0
Number of protected contact energized outputs

0
Type of actuation

Other
Type of interface

None
Type of interface for safety communication

None
Construction type housing

Cylinder, screw-thread
Coating housing

Other
Cascadable

false
SIL according to IEC 61508

None
Performance level according to EN ISO 13849-1

None
Max. output current at protected output

0 mA
Supply voltage

10 - 30 V
Rated control supply voltage DC

10 - 30 V
Voltage type

DC
DC
DC
DC
Switching frequency

200 Hz
With monitoring function downstream switching devices

false
Housing material

Metal
Stainless steel
Compression-resistant

false
Explosion safety category for gas

None
Explosion safety category for dust

None
Supplyoltage (V)

10 ... 30
Design

Cylindrical
Switching frequency (Hz)

200
Special version

Reduction factor 1

Manufacturer Leuze
