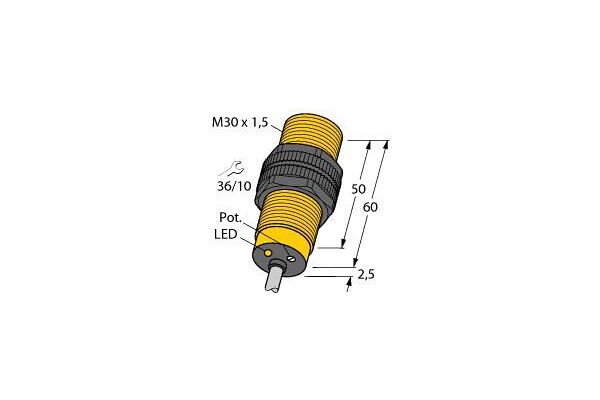

BCF10-S30-RZ3X Capacitive Sensor

BCF10-S30-RZ3X

Capacitive Sensor, Operating voltage 20…250 VAC, Rated switching distance 10 mm, Flush, Cable length 2 m, M30 × 1.5 threaded barrel, Plastic, PA12‐GF30, Fine adjustment via potentiometer, Increased EMI protection (even with high frequency equipment), Suited for highly viscous media, AC 2-wire, 20…250 VAC, NC contact, Cable connection

  • SKU
    4047101089608
  • Manufacturer code
    2506013
  • Length of sensor
    62.5 mm
  • Diameter sensor
    30 mm
  • Flush / Non-flush
    Concise
  • Switching distance
    10 mm
  • Type of switch function
    Breaker contact
  • Type of switching output
    2-wire
  • Type of electric connection
    Cable
  • Type of actuation
    Metallic Target
  • Type of interface for safety communication
    None
  • Construction type housing
    Cylinder, screw-thread
  • Supply voltage
    20 - 250 V
  • Voltage type
    AC
  • Switching frequency
    20 Hz
  • Type of interface
    Other
  • Rated control supply voltage Us at AC 50HZ
    20 - 250 V
  • Rated control supply voltage Us at AC 60HZ
    20 - 250 V
  • Type of switch function
    NC contact
  • Flush / Non-flush
    Flush
  • Housing material
    Plastic
  • Cable length (m)
    2
  • Manufacturer Turck

Product attachments

file-55286-716bfe1d2bb574bc1d5030ad8794d55e.pdf (PDF, 270.31 kB)
