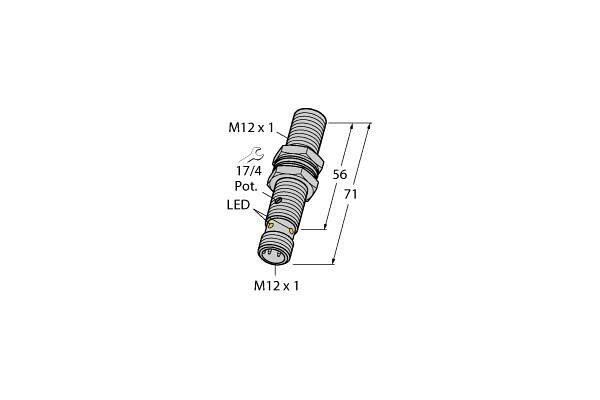

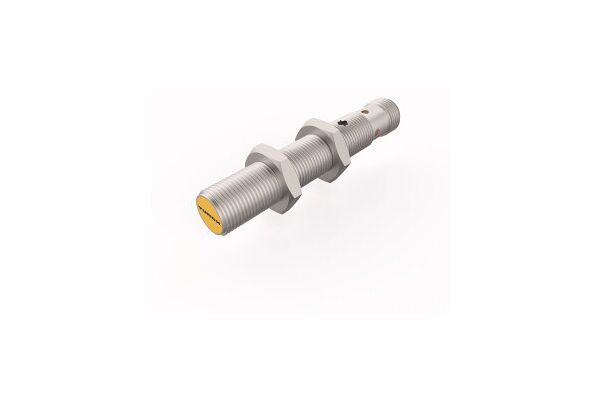

Capacitive Sensor, Rated switching distance 3 mm, Flush, M12 × 1 threaded barrel, Chrome-plated brass, Fine adjustment via potentiometer, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 × 1 connector

SKU

4047101261387
Manufacturer code

2601011
Length of sensor

71 mm
Diameter sensor

12 mm
Flush / Non-flush

Concise
Switching distance

3 mm
Type of switch function

Normally open contact
Type of switching output

PNP
Type of electric connection

Plug-in connection
Type of actuation

Metallic Target
Type of interface for safety communication

None
Construction type housing

Cylinder, screw-thread
Coating housing

Chromium-plated
Supply voltage

30 - 30 V
Voltage type

DC
Switching frequency

100 Hz
Type of interface

Other
Type of switch function

NO contact
Type of switching output

PNP
Rated control supply voltage Us at DC

30 - 30
Flush / Non-flush

Flush
Housing material

Metal

Manufacturer Turck
