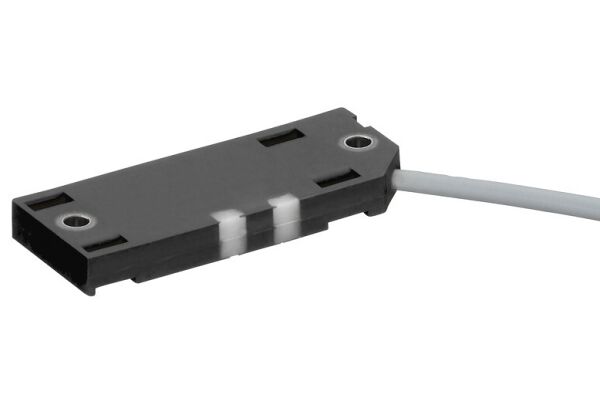

LCS-1Q54P-F10PNO-K020P

Compact capacitive sensor with a PNP normally open output, designed for precise detection tasks.

SKU

2110-50135743
Manufacturer code

50135743
Length of sensor

5.5 mm
Flush / Non-flush

Concise
Switching distance

0 mm
Suitable for safety functions

false
Type of switch function

Normally open contact
Type of switching output

PNP
Type of electric connection

Cable
Number of semiconductor outputs with signalling function

1
Number of contact energized outputs with signalling function

0
Number of protected semiconductor outputs

0
Number of protected contact energized outputs

0
Type of actuation

Other
Type of interface for safety communication

None
Construction type housing

Cuboid
Coating housing

Other
Cascadable

false
SIL according to IEC 61508

None
Performance level according to EN ISO 13849-1

None
Max. output current at protected output

0 mA
Supply voltage

10 - 30 V
Rated control supply voltage DC

10 - 30 V
Voltage type

DC
Switching frequency

100 Hz
With monitoring function downstream switching devices

false
With status indication

false
Housing material

Plastic
Compression-resistant

false
Explosion safety category for gas

None
Explosion safety category for dust

None
Width sensor

54 mm
Height of sensor

20.3 mm
Most suitable applications

Precise detection tasks
Design

Cubic
Switching distance Sn (mm)

1 ... 10
Type of switch function

PNP, NO

Manufacturer Leuze
Need our help?

or call us at

An inquiry about LCS-1Q54P-F10PNO-K020P

Please enter your inquiry below and we'll get back to you as soon as possible.

Company

Your name

E-mail

Phone number

Message

Product attachments

DS_LCS-1Q54P-F10PNO-K020P_eng_50135743 (LINK)
