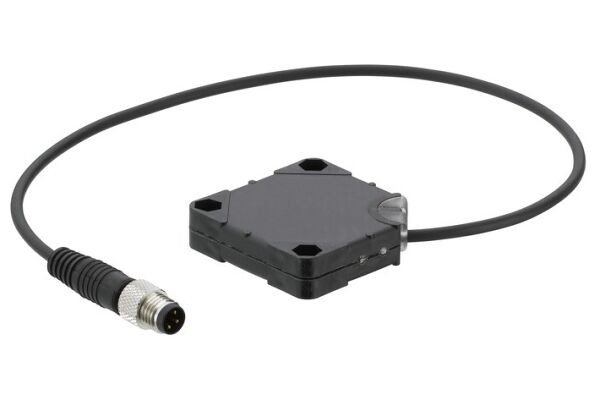

LCS-1Q40P-F20BNP-K020P Capacitive sensor

LCS-1Q40P-F20BNP-K020P
Cubic capacitive sensor with a switching distance of up to 20 mm.
  • SKU
    2110-50135742
  • Manufacturer code
    50135742
  • Length of sensor
    10 mm
  • Flush / Non-flush
    Concise
  • Switching distance
    20 mm
  • Suitable for safety functions
    false
  • Type of switch function
    Change-over contact
  • Type of switching output
    PNP/NPN
  • Type of electric connection
    Cable
  • Number of semiconductor outputs with signalling function
    1
  • Number of contact energized outputs with signalling function
    0
  • Number of protected semiconductor outputs
    0
  • Number of protected contact energized outputs
    0
  • Type of actuation
    Other
  • Type of interface for safety communication
    None
  • Construction type housing
    Cuboid
  • Coating housing
    Other
  • Cascadable
    false
  • SIL according to IEC 61508
    None
  • Performance level according to EN ISO 13849-1
    None
  • Max. output current at protected output
    0 mA
  • Supply voltage
    10 - 30 V
  • Rated control supply voltage DC
    10 - 30 V
  • Voltage type
    DC
  • Switching frequency
    100 Hz
  • With monitoring function downstream switching devices
    false
  • With status indication
    false
  • Housing material
    Plastic
  • Compression-resistant
    false
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Width sensor
    40 mm
  • Height of sensor
    40 mm
  • Design
    Cubic
  • Switching distance Sn (mm)
    1 ... 20
  • Type of switch function
    Push-pull, NC/NO
  • Manufacturer Leuze

Product attachments

DS_LCS-1Q40P-F20BNP-K020P_eng_50135742 (LINK)
