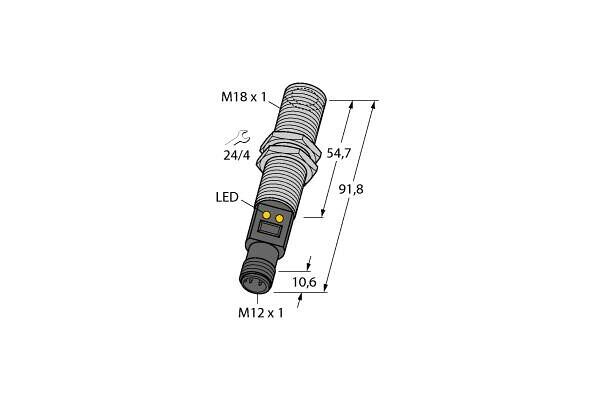

M18TIP6EQ Temperature sensor, Passive Infrared Sensor, With Analog Output

M18TIP6EQ

Temperature sensor, Passive Infrared Sensor, With Analog Output, Operating voltage 12…30 VDC, connection via M12 x 1 connector, D:S ratio 6:1, Operating voltage 12…30 VDC, Measuring range adjustable via teach-in, Analog output 4…20 mA, PNP alarm output switches at the measuring range limit of 20 mA, Temperature measuring range 0…300 °C

  • SKU
    0662488784652
  • Manufacturer code
    3078465
  • Max. operating temperature
    70 °C
  • Rated control supply voltage Us at DC
    12 - 30 V
  • Type of electric connection
    Other
  • Degree of protection (IP)
    IP67
  • Type of switching output
    PNP

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-33520-2813f6477fcdf4787a3428ed5f7ea3d8.pdf (PDF, 521.04 kB)
