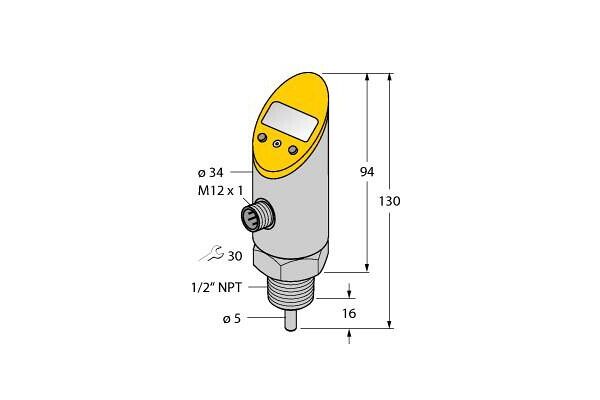

TS-530-LI2UPN8X-H1141-L016 Temperature Detection, With Current Output and PNP/NPN Transistor Switching Outp

TS-530-LI2UPN8X-H1141-L016

Temperature Detection, With Current Output and PNP/NPN Transistor Switching Output, Output 2 Reprogrammable as Switching Output, Operating voltage 18…30 VDC, Housing is rotatable after plugging the process connection, Reading of adjusted values without tools, Recessed pushbutton and keylock for secure programming, Permanent display of temperature unit (°C, °F, K, Ohm), Temperature peak memory

  • SKU
    4047101272598
  • Manufacturer code
    6840027
  • Type of electric connection
    Other
  • Rated control supply voltage Us at DC
    18 - 30 V
  • Max. operating temperature
    80 °C
  • Adjustable switch on temperature
    -49.8 - 150 °C
  • Adjustable switch off temperature
    -49.8 - 150 °C
  • Degree of protection (IP)
    IP67
  • Rotatable
    yes
  • Type of switching output
    PNP/NPN
  • Manufacturer Turck

Product attachments

file-48983-bc414bc5cc391b3643f91fcad35d52b8.pdf (PDF, 226.21 kB)
