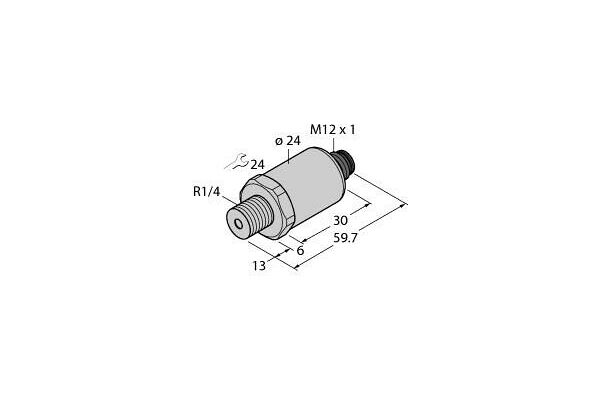

PT24V-2010-IOL-H1141 Pressure Transmitter, IO-Link with Two Switching Outputs

PT24V-2010-IOL-H1141

Pressure Transmitter, IO-Link with Two Switching Outputs, Operating voltage 18…33 VDC, Fully welded metal measuring cell, Pressure range -1…24 bar rel., 18…33 V DC, NO/NC contact, 2 × PNP/NPN outputs, IO-Link, Process connection R 1/4" male thread EN 10226, Connector device, M12 × 1

  • SKU
    4047101595161
  • Manufacturer code
    100038897
  • Engaging pressure
    -1 - -1 bar
  • Initial setting
    -1000 - -1000 hPa
  • Switch off pressure
    24 - 24 bar
  • End setting
    24000 - 24000 hPa
  • Max. test pressure
    75 bar
  • Bursting pressure
    150 bar
  • Medium temperature
    -40 - 135 °C
  • Rated voltage Ue at DC
    18 - 33 V
  • Initial value measuring range pressure
    -100000 Pa
  • End value measuring range pressure
    2400000 Pa
  • Type of electric connection
    Other
  • Degree of protection (IP)
    IP67
  • Connector gender
    male
  • Type of switch function
    NO/NC contacts
  • Type of switching output
    PNP/NPN
  • Network protocol
    IO-link

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-55831-643c18e40f1d166a45d8810f7b8d571a.pdf (PDF, 225.23 kB)
