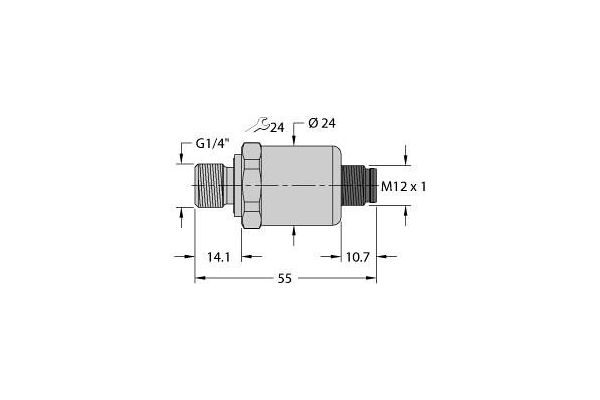

PT10R-1004-U3-H1143/D802 Pressure Transmitter, With Voltage Output (3-Wire)

PT10R-1004-U3-H1143/D802

Pressure Transmitter, With Voltage Output (3-Wire), Operating voltage 7…33 VDC, Ceramic measuring cell, Compact and robust design, Excellent EMC properties, Pressure range 0…10 bar rel., Calibration certificate, 7…33 VDC, Analog output 0…5 V, Process connection G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring, Connector device, M12 × 1

  • SKU
    4047101591682
  • Manufacturer code
    100036906
  • Ambient temperature
    -30 - 85 °C
  • Connector gender
    male

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-45590-9c3d80a05affe4279d744c5dae802a88.pdf (PDF, 92.99 kB)
