Name: TipTeh d.o.o.
Address: Ulica Ivana Roba 23, Ljubljana, 1000, SI
Telephone: +38612005150
Price range: €€

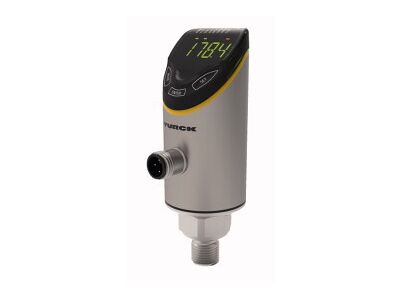

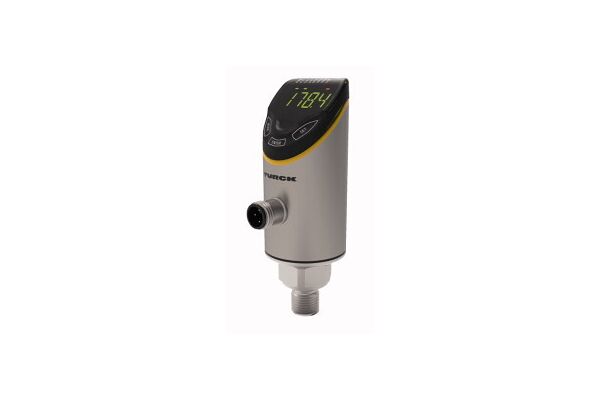

Pressure Sensor, Absolute Pressure: 0…2.5 Bar, Operating voltage 18…33 VDC, 4-digit, 2-colored, 12-segment display, rotatable by 180°, Housing is rotatable after plugging the process connection, Ceramic measuring cell, 18…33 VDC, NO/NC contact, PNP/NPN output, analog output (current/voltage), IO-Link, Process connection G1/2" male thread (manometer), Plug-in device, M12 × 1

SKU

4047101484397
Manufacturer code

100003721
Engaging pressure

0 - 0 bar
Initial setting

0 - 0 hPa
Switch off pressure

2.5 - 2.5 bar
End setting

2500 - 2500 hPa
Max. test pressure

12 bar
Bursting pressure

12 bar
Medium temperature

-40 - 90 °C
Rated voltage Ue at DC

18 - 33 V
Initial value measuring range pressure

0 Pa
End value measuring range pressure

250000 Pa
Type of electric connection

Other
Adjustable current range

4 - 20 A
Degree of protection (IP)

IP66
Connector gender

male
NO/NC

NO/NC contacts
Type of switching output

PNP/NPN
Network protocol

IO-link
Rotatable

yes

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Turck
