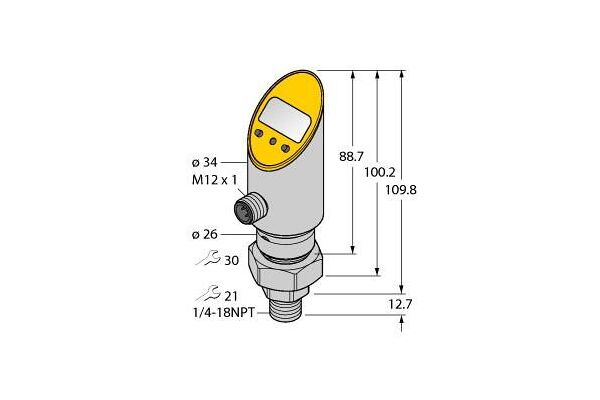

PS016V-503-LI2UPN8X-H1141 Pressure Transmitter (Rotatable), With Analog Output and PNP/NPN Transistor Swit

PS016V-503-LI2UPN8X-H1141

Pressure Transmitter (Rotatable), With Analog Output and PNP/NPN Transistor Switching Output, Output 2 Reprogrammable as Switching Output, Operating voltage 18…30 VDC, Housing is rotatable after plugging the process connection, Reading of adjusted values without tool, Recessed pushbutton and keylock for secure programming, Permanent indication of pressure (bar, psi, kPa, MPa, misc), Peak pressure memory, Pressure range -1…16 bar rel.

  • SKU
    4047101241198
  • Manufacturer code
    6832830
  • Engaging pressure
    -1 - -1 bar
  • Initial setting
    -1000 - -1000 hPa
  • Switch off pressure
    16 - 16 bar
  • End setting
    16000 - 16000 hPa
  • Max. test pressure
    70 bar
  • Bursting pressure
    70 bar
  • Medium temperature
    -40 - 85 °C
  • Rated voltage Ue at DC
    18 - 30 V
  • Initial value measuring range pressure
    -100000 Pa
  • End value measuring range pressure
    1600000 Pa
  • Type of electric connection
    Other
  • Adjustable current range
    4 - 20 A
  • Degree of protection (IP)
    IP67
  • Type of switching output
    PNP/NPN
  • Rotatable
    yes
  • Manufacturer Turck

Product attachments

file-48596-c899a8d16c5d17bacd2013f35afad526.pdf (PDF, 343.89 kB)
