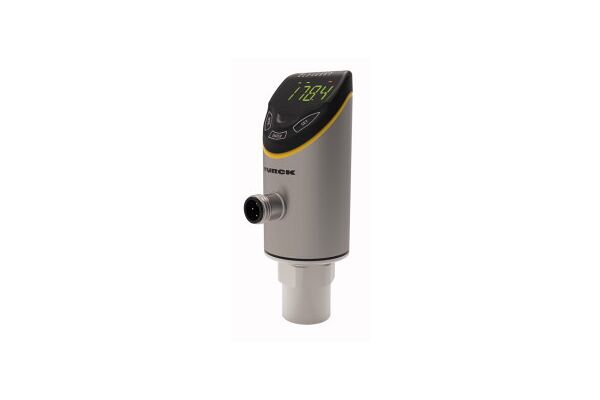

PS310-0V-02-LI2UPN8-H1141 Pressure Sensor, Relative Pressure: -1…0  Bar

PS310-0V-02-LI2UPN8-H1141

Pressure Sensor, Relative Pressure: -1…0  Bar, Operating voltage 18…33 VDC, 4-digit, 2-colored, 12-segment display, rotatable by 180°, Housing is rotatable after plugging the process connection, Ceramic measuring cell, 18…33 VDC, NO/NC contact, PNP/NPN output, analog output (current/voltage), IO-Link, Process connection 1/4 inch NPT-18 female thread, Connector device, M12 × 1

  • SKU
    4047101555783
  • Manufacturer code
    100001487
  • Engaging pressure
    -1 - -1 bar
  • Initial setting
    -1000 - -1000 hPa
  • Switch off pressure
    0 - 0 bar
  • End setting
    0 - 0 hPa
  • Max. test pressure
    5.5 bar
  • Bursting pressure
    5.5 bar
  • Medium temperature
    -30 - 80 °C
  • Rated voltage Ue at DC
    18 - 33 V
  • Initial value measuring range pressure
    -100000 Pa
  • End value measuring range pressure
    0 Pa
  • Type of electric connection
    Other
  • Adjustable current range
    4 - 20 A
  • Degree of protection (IP)
    IP66
  • Connector gender
    female
  • NO/NC
    NO/NC contacts
  • Type of switching output
    PNP/NPN
  • Network protocol
    IO-link
  • Rotatable
    yes
  • Manufacturer Turck

Product attachments

file-44059-adccf7e52de4de3ac1339e9cff923b40.pdf (PDF, 929.82 kB)
