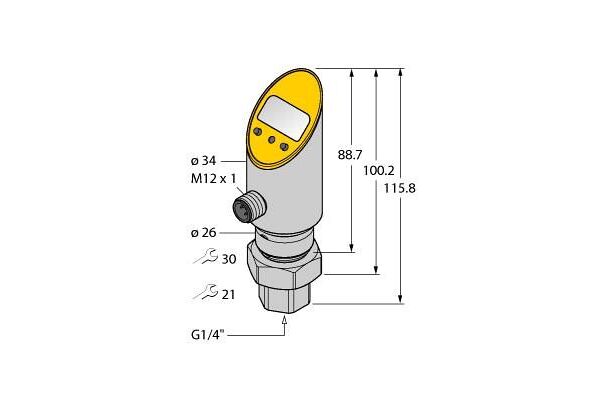

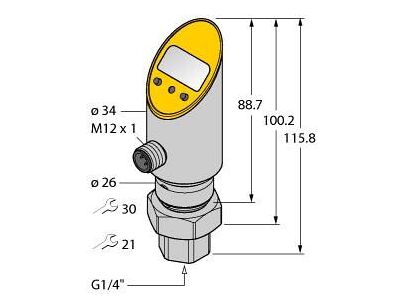

PS025V-501-LI2UPN8X-H1141/3GD Pressure Transmitter (Rotatable), With Analog Output and PNP/NPN Transistor Swit

PS025V-501-LI2UPN8X-H1141/3GD

Pressure Transmitter (Rotatable), With Analog Output and PNP/NPN Transistor Switching Output, Output 2 Reprogrammable as Switching Output, Operating voltage 18…30 VDC, Housing is rotatable after plugging the process connection, Reading of adjusted values without tool, Recessed pushbutton and keylock for secure programming, Permanent indication of pressure (bar, psi, kPa, MPa, misc), Peak pressure memory, Pressure range -1…25 bar rel., ATEX category II 3 G, Ex zone 2, ATEX category II 3 D, Ex zone 22

  • SKU
    4047101378368
  • Manufacturer code
    6833843
  • Engaging pressure
    -1 - -1 bar
  • Initial setting
    -1000 - -1000 hPa
  • Switch off pressure
    25 - 25 bar
  • End setting
    25000 - 25000 hPa
  • Max. test pressure
    110 bar
  • Bursting pressure
    110 bar
  • Medium temperature
    -40 - 85 °C
  • Rated voltage Ue at DC
    18 - 30 V
  • Initial value measuring range pressure
    -100000 Pa
  • End value measuring range pressure
    2500000 Pa
  • Type of electric connection
    Other
  • Adjustable current range
    4 - 20 A
  • Degree of protection (IP)
    IP67
  • Type of switching output
    PNP/NPN
  • Rotatable
    yes
  • Atex category
    ATEX category II 3 D
    ATEX category II 3 G
  • Manufacturer Turck

Product attachments

file-43272-bfde36c9b5d346be390ce849bf399e4b.pdf (PDF, 392.08 kB)
