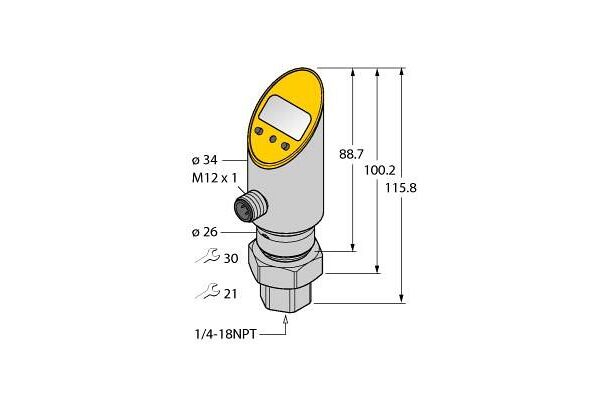

PS003V-502-LI2UPN8X-H1141 Pressure Transmitter (Rotatable), With Analog Output and PNP/NPN Transistor Swit

PS003V-502-LI2UPN8X-H1141

Pressure Transmitter (Rotatable), With Analog Output and PNP/NPN Transistor Switching Output, Output 2 Reprogrammable as Switching Output, Operating voltage 18…30 VDC, Housing is rotatable after plugging the process connection, Reading of adjusted values without tool, Recessed pushbutton and keylock for secure programming, Permanent indication of pressure (bar, psi, kPa, MPa, misc), Peak pressure memory, Pressure range -1…2.5 bar rel.

  • SKU
    4047101241051
  • Manufacturer code
    6832816
  • Engaging pressure
    -1 - -1 bar
  • Initial setting
    -1000 - -1000 hPa
  • Switch off pressure
    2.5 - 2.5 bar
  • End setting
    2500 - 2500 hPa
  • Max. test pressure
    12 bar
  • Bursting pressure
    12 bar
  • Medium temperature
    -40 - 85 °C
  • Rated voltage Ue at DC
    18 - 30 V
  • Initial value measuring range pressure
    -100000 Pa
  • End value measuring range pressure
    250000 Pa
  • Type of electric connection
    Other
  • Adjustable current range
    4 - 20 A
  • Degree of protection (IP)
    IP67
  • Type of switching output
    PNP/NPN
  • Rotatable
    yes

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-37755-e0e79d782a71af78d3f3ada0a2a8fe6f.pdf (PDF, 340.01 kB)
