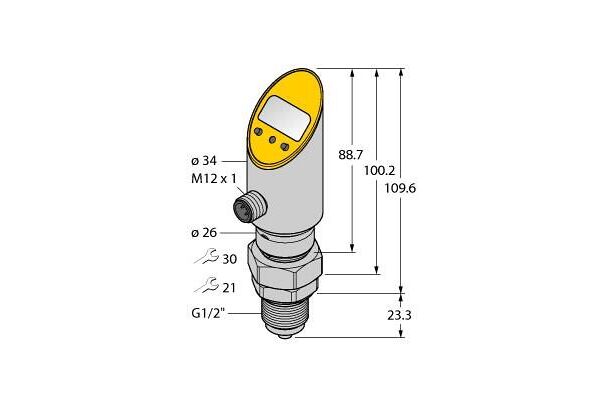

PS016V-508-2UPN8X-H1141/3GD Pressure Transmitter (Rotatable), 2 PNP/NPN Transistor Switching Outputs

PS016V-508-2UPN8X-H1141/3GD

Pressure Transmitter (Rotatable), 2 PNP/NPN Transistor Switching Outputs, Operating voltage 18…30 VDC, Housing is rotatable after plugging the process connection, Reading of adjusted values without tool, Recessed pushbutton and keylock for secure programming, Permanent indication of pressure (bar, psi, kPa, MPa, misc), Peak pressure memory, Pressure range -1…16 bar rel., ATEX category II 3 G, Ex zone 2, ATEX category II 3 D, Ex zone 22

  • SKU
    4047101378535
  • Manufacturer code
    6834045
  • Engaging pressure
    -1 - -1 bar
  • Initial setting
    -1000 - -1000 hPa
  • Switch off pressure
    16 - 16 bar
  • End setting
    16000 - 16000 hPa
  • Max. test pressure
    40 bar
  • Bursting pressure
    40 bar
  • Medium temperature
    -40 - 85 °C
  • Rated voltage Ue at DC
    18 - 30 V
  • Initial value measuring range pressure
    -100000 Pa
  • End value measuring range pressure
    1600000 Pa
  • Type of electric connection
    Other
  • Degree of protection (IP)
    IP67
  • Type of switching output
    PNP/NPN
  • Rotatable
    yes
  • Atex category
    ATEX category II 3 D
    ATEX category II 3 G
  • Manufacturer Turck

Product attachments

file-34605-918218c0aa8c67db9fd6501f84a6feb4.pdf (PDF, 398.2 kB)
