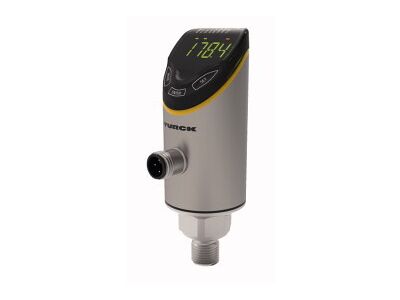

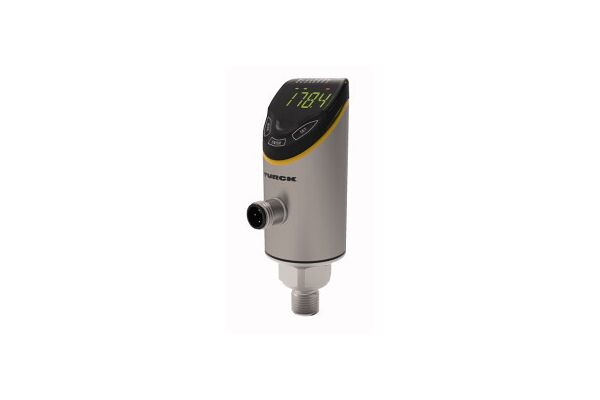

PS510-400-08-2UPN8-H1141 Pressure Sensor, Relative Pressure: 0…400  Bar

PS510-400-08-2UPN8-H1141

Pressure Sensor, Relative Pressure: 0…400  Bar, Operating voltage 18…33 VDC, 4-digit, 2-colored, 12-segment display, rotatable by 180°, Housing is rotatable after plugging the process connection, Metal measuring cell, 18…33 VDC, NO/NC contact, PNP/NPN output, IO-Link, Process connection G1/2" male thread (manometer), Plug-in device, M12 × 1

  • SKU
    4047101554687
  • Manufacturer code
    100001740
  • Engaging pressure
    0 - 0 bar
  • Initial setting
    0 - 0 hPa
  • Switch off pressure
    400 - 400 bar
  • End setting
    400000 - 400000 hPa
  • Max. test pressure
    2160 bar
  • Bursting pressure
    2700 bar
  • Medium temperature
    -30 - 80 °C
  • Rated voltage Ue at DC
    18 - 33 V
  • Initial value measuring range pressure
    0 Pa
  • End value measuring range pressure
    40000000 Pa
  • Type of electric connection
    Other
  • Degree of protection (IP)
    IP66
  • Connector gender
    male
  • NO/NC
    NO/NC contacts
  • Type of switching output
    PNP/NPN
  • Network protocol
    IO-link
  • Rotatable
    yes
  • Manufacturer Turck

Product attachments

file-33245-d9272dc41a7c9c3fab09a6663ab23113.pdf (PDF, 879.79 kB)
