BTS-DSU35-Z07 Accessories, Mounting Kit

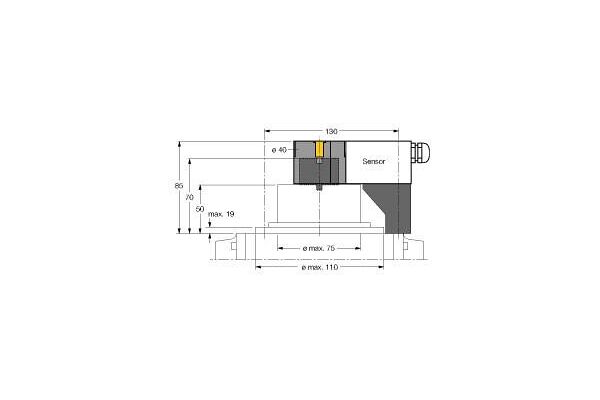

Accessories, Mounting Kit, Mounting kit for larger rotary actuators:, Ø spacer plate and snap ring: max. 110 mm, Hole pattern on flange surface: 30 x 130 mm, Connection shaft (shaft extension) height: 50 mm/Ø: max. 75 mm, Included in delivery:, 1 spacer plate 50 mm (POM), 1 spacer ring Ø 20 mm (PP-GF30), Mounting the spacer plate:, 2 cylinder screws M5 x 12 [DIN 912‐A2], 2 cylinder screws M5 × 65 [DIN 912-A2], 4 lock washers A5 [DIN 137-A2], Mounting the puck with spacer ring:, 1 countersunk screw M6 × 45 [DIN 7991-A2], The spacer ring has a 4 x 4 mm cross-shaped notch allowing the actuator to be mounted offset by 90°, suited for crosswise-mounted drives.
