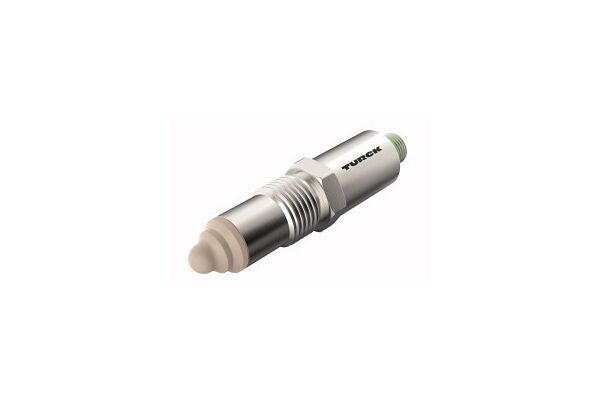

NCLS-30-UP6X-H1141 Capacitive Limit Level Sensor

NCLS-30-UP6X-H1141

Capacitive Limit Level Sensor, Operating voltage 12…32 VDC, Immersion sensor, Media-contacting detection of limit levels in tanks and pipes, Detection of different substances (liquid, viscous, granular, powder form), Hygienic PEEK tip, CIP/SIP compatible, EHEDG certified (with NCLS-WA1 process adapter), Highly visible ring LED, 12…32 VDC, power consumption: typically 1 W, max. 3 W, Two digital outputs, separately adjustable as NO/NC, PNP, NPN or push-pull, switchable, IO-Link for parameterization/process values, Process connection G1/2" male thread, hygienic (in combination with TURCK adapters), 4-pin connector device, M12 × 1

  • SKU
    4047101496734
  • Manufacturer code
    100004248
  • Flush / Non-flush
    Other
  • Type of switch function
    Change-over contact
  • Type of switching output
    PNP
  • Type of electric connection
    Plug-in connection
  • Type of actuation
    Metallic Target
  • Type of interface for safety communication
    None
  • Construction type housing
    Cylinder, screw-thread
  • Voltage type
    DC
  • Type of interface
    Other
  • Rated control supply voltage Us at DC
    12 - 32 V
  • Housing material
    Metal
  • Connector gender
    male
  • Type of switching output
    PNP/NPN
  • Network protocol
    IO-link

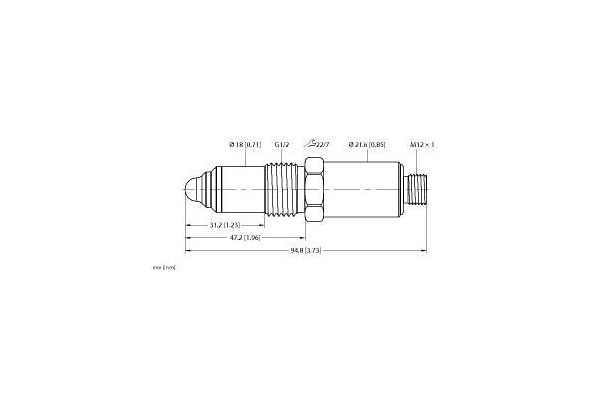

  • Width sensor
    22
  • Height of sensor
    22
  • Length of sensor
    94.8
  • Supply voltage
    12 - 32
  • NO/NC
    NO/NC contacts
  • Manufacturer Turck

Product attachments

file-48877-4a0e375f455cb1134088c65bac2c1ce8.pdf (PDF, 1.29 MB)
