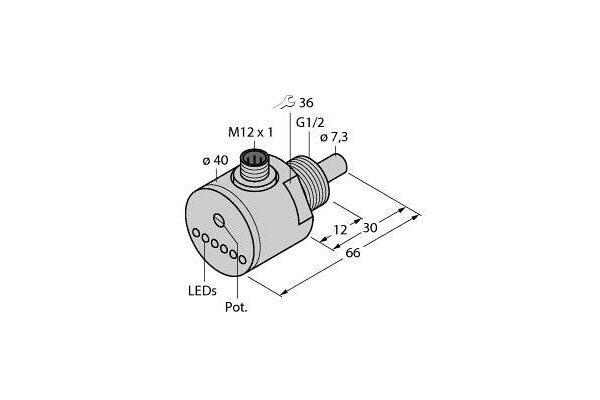

FCS-G1/2A4-AP8X-H1141 3M Flow Monitoring, Immersion Sensor with Integrated Processor

FCS-G1/2A4-AP8X-H1141 3M

Flow Monitoring, Immersion Sensor with Integrated Processor, Operating voltage 19.2…28.8 VDC, Immersion sensor, Sensor for liquid media, Calorimetric principle, Adjustment via potentiometer, Status indicated via LED chain, DC 3-wire, 19.2…28.8 VDC, NO contact, PNP output, Connector device, M12 × 1

  • SKU
    4047101244090
  • Manufacturer code
    6870050
  • Measurement principle
    Thermal
  • Type of process connection
    Thread connection
  • Adjustable setting value for flow for liquids
    1 - 150 m/s
  • Compressive strength measuring head
    100 bar
  • Type of electric connection
    Plug-in connection
  • Ambient temperature for evaluation electronic
    -20 - 80 °C
  • Rated control supply voltage Us at DC
    19.2 - 28.8 V
  • Voltage type for actuating
    DC
  • Type of switch function
    NO contact
  • Type of switching output
    PNP
  • Manufacturer Turck
