REI-E-111T8C-2B512-C Incremental Encoder, Efficiency Line

REI-E-111T8C-2B512-C

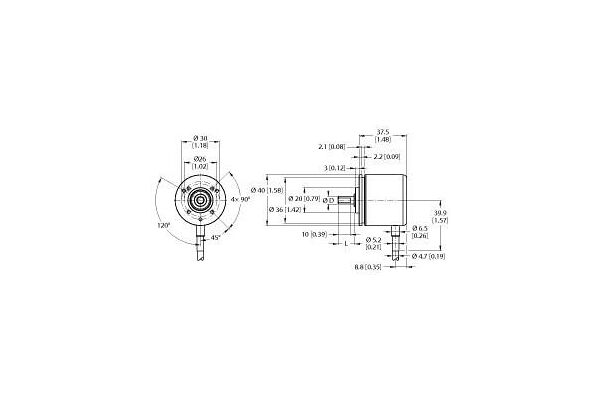

Incremental Encoder, Efficiency Line, Operating voltage 10…30 VDC, Resolution incremental 512 ppr, Synchro/clamping flange, Ø 40 mm, Solid shaft, Ø 8 mm × 12.5 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP64 on housing and shaft side, ‐20…+70 °C, Max. 4500 rpm, 10…30 VDC, Push-pull/HTL invertible, Pulse frequency max. 300 kHz, Cable connection, 512 pulses per revolution

  • SKU
    4047101545890
  • Manufacturer code
    100011955
  • Model
    Incremental encoder
  • Physical measurement principle
    Optic
  • Max. pulses per revolution
    300
  • Type of electric connection
    Cable
  • Standard for interfaces
    Other
  • Impulse rate per cycle
    512
  • Diameter axle
    8 - 8 mm
  • Housing material
    Aluminium
  • Degree of protection (IP)
    IP64
  • Manufacturer Turck

Product attachments

file-52285-da807f2e0e49ad2fae654b927344190b.pdf (PDF, 197.99 kB)
