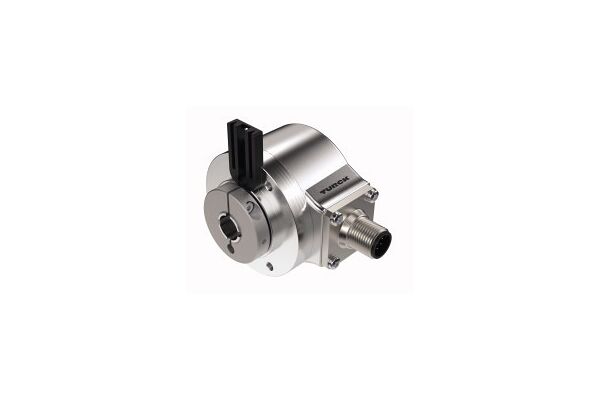

REI-12HA1T-2B5000-H1181 Incremental Encoder, Industrial Line

REI-12HA1T-2B5000-H1181

Incremental Encoder, Industrial Line, Operating voltage 10…30 VDC, Resolution incremental 5000 ppr, Flange with torque stop, Ø 50.8 mm, Hollow shaft, Ø 3/8", Optical measuring principle, Shaft material: stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 10…30 VDC, Push-pull/HTL invertible, Pulse frequency max. 300 kHz, M12 × 1 male connector, 8-pin, 5000 pulses per revolution

  • SKU
    4047101551679
  • Manufacturer code
    100010410
  • Model
    Incremental encoder
  • Physical measurement principle
    Optic
  • Max. pulses per revolution
    300
  • Type of shaft encoder
    Hollow shaft
  • Type of electric connection
    Plug-in connection
  • Standard for interfaces
    Other
  • Impulse rate per cycle
    5000
  • Diameter axle
    9.525 - 9.525 mm
  • Housing material
    Other
  • Degree of protection (IP)
    IP67
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-44900-039255143681933527fec05e13dd1f78.pdf (PDF, 972.22 kB)
