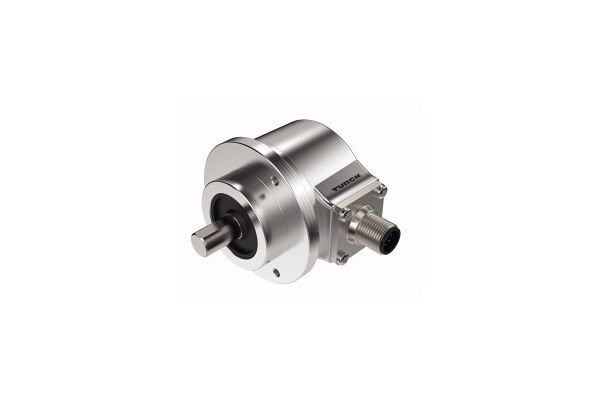

RI-10S6C-2B2048-H1181 Incremental Encoder, Industrial Line
Manufacturer: Turck Code: 1545201 SKU: 4047101268263

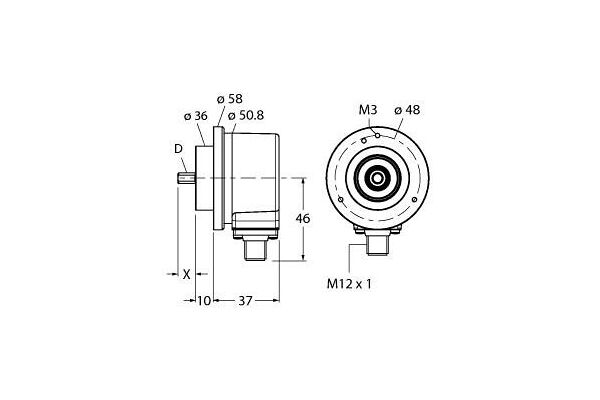

Incremental Encoder, Industrial Line, Operating voltage 10…30 VDC, Resolution incremental 2048 ppr, Clamping flange, Ø 58 mm, Solid shaft, Ø 3/8" × 5/8", Optical measuring principle, Shaft material: stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 10…30 VDC, Push-pull/HTL invertible, Pulse frequency max. 300 kHz, M12 × 1 male connector, 8-pin, 2048 pulses per revolution
