REI-10S6S-4B1000-H1181 Incremental Encoder, Industrial Line

REI-10S6S-4B1000-H1181

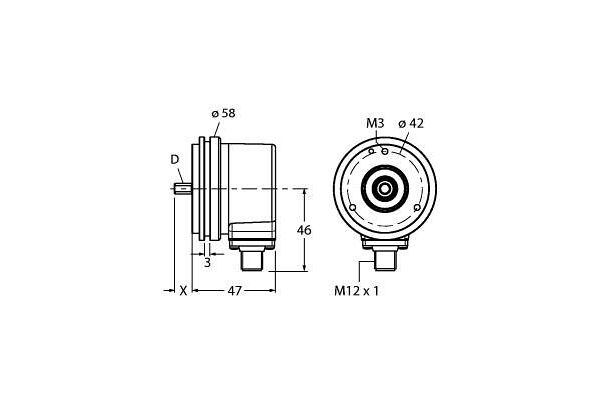

Incremental Encoder, Industrial Line, Operating voltage 5…30 VDC, Resolution incremental 1000 ppr, Synchro flange, Ø 58 mm, Solid shaft, Ø 6 mm × 10 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 5…30 VDC, RS422/TTL invertible, Pulse frequency max. 300 kHz, M12 × 1 male connector, 8-pin, 1000 pulses per revolution

  • SKU
    4047101552454
  • Manufacturer code
    100010332
  • Model
    Incremental encoder
  • Physical measurement principle
    Optic
  • Max. pulses per revolution
    300
  • Type of electric connection
    Plug-in connection
  • Impulse rate per cycle
    1000
  • Diameter axle
    6 - 6 mm
  • Housing material
    Other
  • Degree of protection (IP)
    IP67
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-38745-7d2bb27cab1fb0ebc6b0643a62757872.pdf (PDF, 250.17 kB)
