REI-12H8E-2B3600-H1181 Incremental Encoder, Industrial Line

REI-12H8E-2B3600-H1181

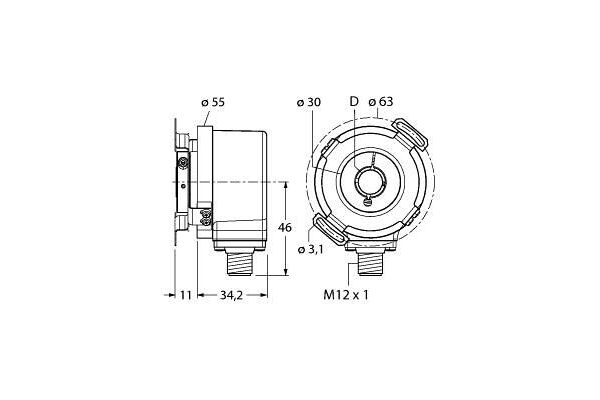

Incremental Encoder, Industrial Line, Operating voltage 10…30 VDC, Resolution incremental 3600 ppr, Flange with stator coupling, Ø 63 mm, Hollow shaft, Ø 8 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 10…30 VDC, Push-pull/HTL invertible, Pulse frequency max. 300 kHz, M12 × 1 male connector, 8-pin, 3600 pulses per revolution

  • SKU
    4047101551150
  • Manufacturer code
    100010462
  • Model
    Incremental encoder
  • Physical measurement principle
    Optic
  • Max. pulses per revolution
    300
  • Type of shaft encoder
    Hollow shaft
  • Type of electric connection
    Plug-in connection
  • Standard for interfaces
    Other
  • Impulse rate per cycle
    3600
  • Diameter axle
    8 - 8 mm
  • Housing material
    Other
  • Degree of protection (IP)
    IP67
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-33421-9793dceedfa71d2c5156e75110ac30d2.pdf (PDF, 1016.71 kB)
