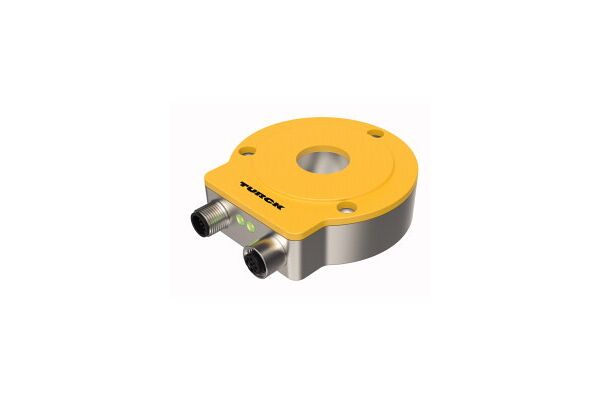

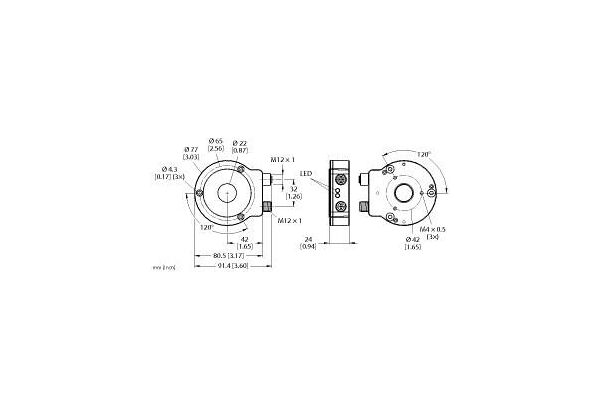

RI360P0-QR24M0-CNX4-2H1150 Contactless Encoder, CANopen, Premium Line

Contactless Encoder, CANopen, Premium Line, Operating voltage 10…30 VDC, Compact, rugged housing, Many mounting possibilities, Status displayed via LED, Positioning element and aluminium ring not incl., CANopen interface, Baud rate 10 kbps up to 1 Mbps; Factory setting: 125 kbps, Node address 1 to 127; Factory setting 3, Terminating resistor switched in via CANopen device access, Immune to electromagnetic interference, 10 … 30 VDC, M12 x 1 male, 5-pin, CAN in, CAN out, Acc. to CiA DS-301, CiA 305, CiA 406
