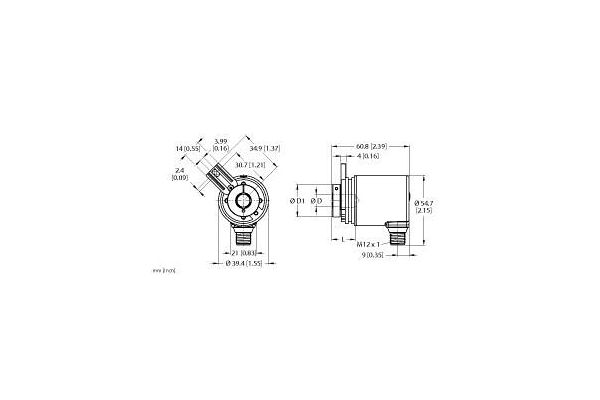

Absolute Rotary Encoder - Single-Turn, Industrial Line, Operating voltage 10…30 VDC, Flange with mounting element, Blind hole hollow shaft, Ø 6 mm (plug-in depth max. 18.5 mm), Magnetic measuring principle, Shaft material: stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 4000 rpm (continuous operation 2000 rpm), 10…30 VDC, SSI, gray, M12 × 1 male connector, 8-pin, 360° resolved in 13 bit (8192 positions)

SKU

4047101545302
Manufacturer code

100016345
Model

Other
Physical measurement principle

Magnetic
Type of shaft encoder

Hollow shaft
Type of electric connection

Plug-in connection
Diameter axle

6 - 6 mm
Housing material

Other
Degree of protection (IP)

IP67
Connector gender

male

Manufacturer Turck

Product attachments

file-47702-17be4927ece3d1abe85015eddf195802.pdf (PDF, 187.07 kB)

Cart

RES-183B6T-3C13B-H1181 Absolute Rotary Encoder - Single-Turn, Industrial Line
