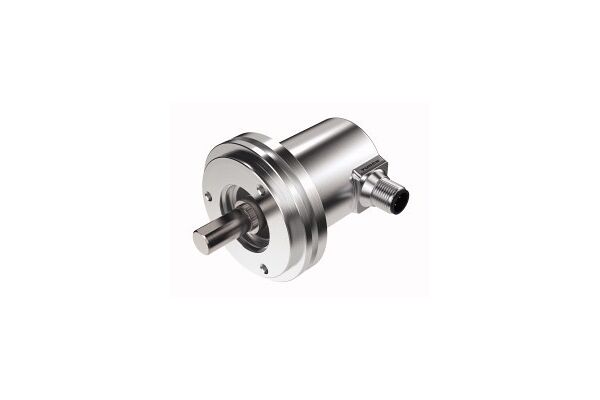

REM-116T6S-8BSARNS-H1151 Absolute Rotary Encoder - Multiturn, Industrial Line

REM-116T6S-8BSARNS-H1151

Absolute Rotary Encoder - Multiturn, Industrial Line, Operating voltage 15…30 VDC, Synchro flange, Ø 58 mm, Solid shaft, Ø 6 mm × 12.5 mm, Magnetic measuring principle, Shaft material: stainless steel, Protection class IP65 on housing and shaft side, ‐40…+85°C, Max. 4000 rpm (continuous operation: 2000), Energy harvesting technology, 15…30 VDC, Analog output, 0…10 V scalable up to 65536 revolutions without limit switch/CW, 12-bit resolution, M12 × 1 male, 5-pin

  • Manufacturer code
    100012478
  • Model
    Other
  • Physical measurement principle
    Magnetic
  • Type of electric connection
    Plug-in connection
  • Diameter axle
    6 - 6 mm
  • Housing material
    Other
  • Degree of protection (IP)
    IP65
  • Standard for interfaces
    Analogue
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-46267-62e10414d8c7a4b83197faad6b2a22fe.pdf (PDF, 1.07 MB)
