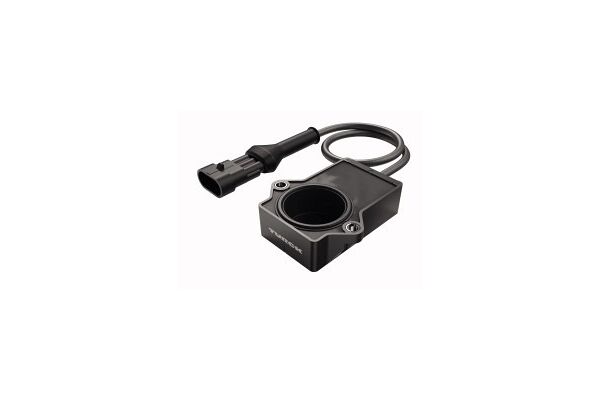

Miniature Encoder, With Analog Output, Premium Line, Operating voltage 8…30 VDC, Cable length 0.24 m, Rectangular, plastic, Compact and robust housing, Versatile mounting possibilities, Positioning element P1-RI-QR20 included in delivery, For vehicle board nets, 12 V and 24 V, Increased interference immunity 100 V/m following the e1 type approval, Protection against conducted interference acc. to DIN ISO 7637-2 (SAE J 113-11), Extended temperature range, High protection class IP68/IP69K, Protection against salt spray and rapid temperature changes, Measuring range displayed via LED, Immune to electromagnetic interference, Resolution: 0.09°, 3‐wire, 8…30 VDC, Analog output 0.5…4.5 V, Output 5 V (typ.) where there is no RLC coupling
- SKU4047101435436
- Manufacturer code100000196
- ModelOther
- Physical measurement principleInductive
- Type of shaft encoderHollow shaft
- Type of electric connectionCable with connector
- Diameter axle6 - 6.35 mm
- Housing materialPlastic
- Degree of protection (IP)IP68
- Standard for interfacesAnalogue
- Programmabletrue
- Approvals / ComplianceE1 type approval
- Cable length (m)0.24
- Manufacturer Turck
