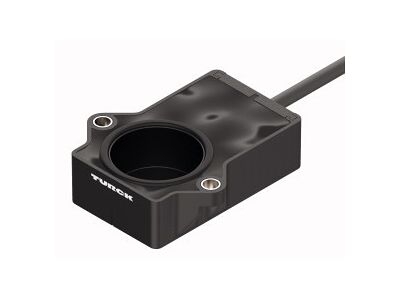

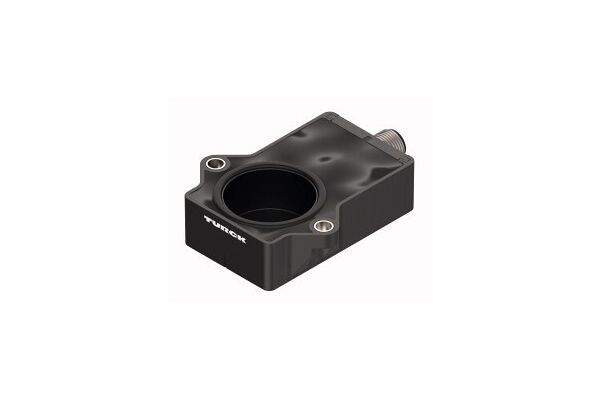

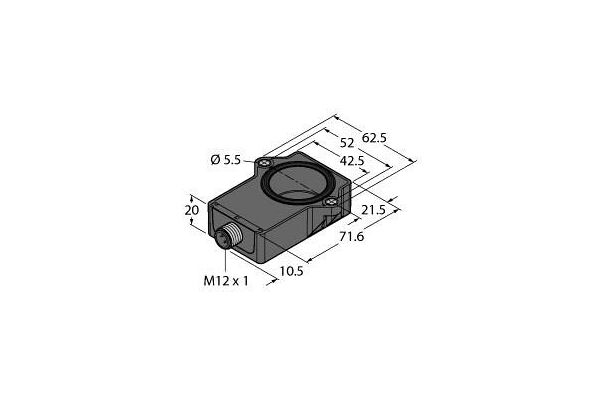

Miniature Encoder, With Analog Output, Premium Line, Operating voltage 15…30 VDC, Rectangular, plastic, Compact and robust housing, Versatile mounting possibilities, Positioning element P1-RI-QR20 included in delivery, High protection class IP68/IP69K, Protection against salt spray, Measuring range displayed via LED, Immune to electromagnetic interference, 0.09° resolution, 3‐wire, 15…30 VDC, Analog output 4…20 mA, Output 22 mA (typ.) where there is no RLC coupling, M12 × 1 male connector, 4-pin

SKU

4047101501575
Manufacturer code

100004587
Model

Other
Physical measurement principle

Inductive
Type of shaft encoder

Hollow shaft
Type of electric connection

Plug-in connection
Diameter axle

6 - 6.35 mm
Housing material

Plastic
Degree of protection (IP)

IP68
Standard for interfaces

Analogue
Programmable

true
Connector gender

male

Manufacturer Turck
