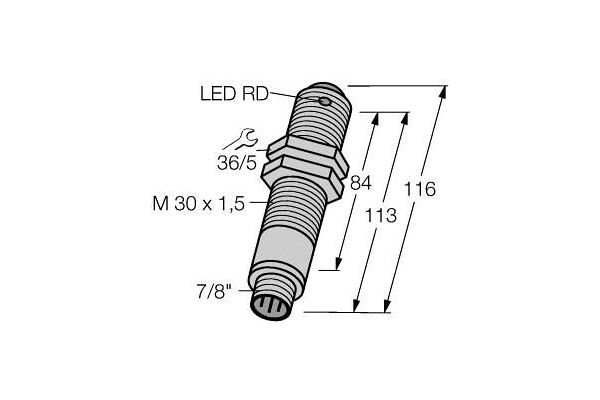

SM2A30PRLNCQDB Photoelectric Sensor, Opposed Mode Sensor (Receiver)

SM2A30PRLNCQDB

Photoelectric Sensor, Opposed Mode Sensor (Receiver), Operating voltage 24…240 VAC, Max. range 150000 mm, 7/8" connector, 3-pin, Protection class IP67, Ambient temperature: -40 °C…+70 °C, Modulation frequency B, requires transmitters with the same frequency, Operating voltage: 24…240 VAC, Semiconductor relay output, SPST, dark operation

  • SKU
    0662488273873
  • Manufacturer code
    3027387
  • Setting procedure
    Other
  • Type of electric connection
    Connector 7/8 inch
  • Type of switching output
    Relay contact
  • Type of switch function
    Other
  • Length of sensor
    116 mm
  • Sensing mode
    Dark switching
    Dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Response time
    10 s
  • Switching frequency
    40 Hz
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    150000 mm
  • Max. switching distance
    150000 mm
  • Diameter sensor
    30 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-56461-bd65b03cdc751a7710f81924ab75f236.pdf (PDF, 110.65 kB)
