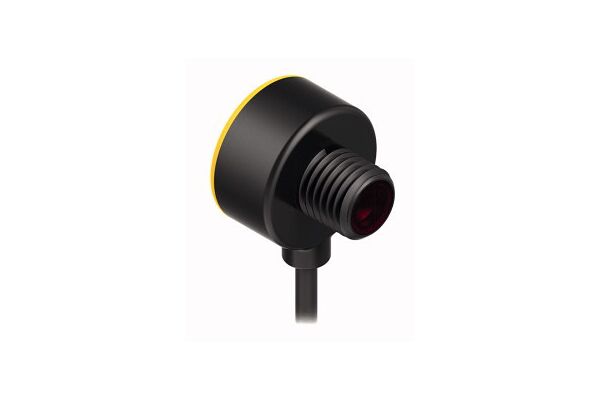

T86EVQ Photoelectric Sensor, Opposed Mode Sensor (Emitter), Miniature Sensor

T86EVQ

Photoelectric Sensor, Opposed Mode Sensor (Emitter), Miniature Sensor, Operating voltage 10…30 VDC, Max. range 2000 mm, Cable length 0.15 m, Cable with male end, PVC, M8 × 1,150 mm, Protection class IP67, Ambient temperature: -20…+55 °C, Ideal for confined spaces, Operating voltage: 10…30 VDC

  • SKU
    0662488666729
  • Manufacturer code
    3066672
  • Type of electric connection
    Connector M8
  • Length of sensor
    15.8 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 55 °C
  • Response time
    1 s
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    2000 mm
  • Max. switching distance
    2000 mm
  • Wavelength of the sensor
    660 nm
  • Type of light
    Polarity free red light
  • Diameter sensor
    8 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Connector gender
    male
  • Cable length (m)
    0.15

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck
