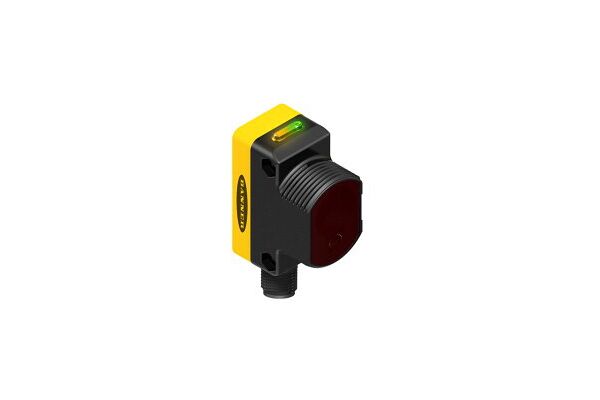

QS30ARXQ Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver)

QS30ARXQ

Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), Operating voltage 10…30 VDC, Max. range 213000 mm, Male M12 × 1, 5-pin, Protection classes IP67 / IP69K, LED all-round visible, Selectable operating frequency, protection against crosstalk, 4-segment bargraph, Operating voltage: 10…30 VDC, Switching output, bipolar, light operation

  • SKU
    0662488715625
  • Manufacturer code
    3071562
  • Setting procedure
    Other
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Width sensor
    22 mm
  • Height of sensor
    57 mm
  • Length of sensor
    35 mm
  • Sensing mode
    Light switching
    Light switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 70 °C
  • Response time
    5 s
  • Switching frequency
    16 Hz
  • Suitable for safety functions
    false
  • Rated switching distance
    213000 mm
  • Max. switching distance
    213000 mm
  • Wavelength of the sensor
    875 nm
  • Diameter sensor
    30 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Type of switching output
    PNP/NPN
  • Connector gender
    male

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck
