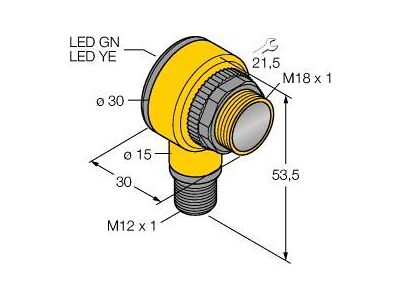

T18SP6REQ Photoelectric Sensor, Opposed Mode Sensor (Receiver)

T18SP6REQ

Photoelectric Sensor, Opposed Mode Sensor (Receiver), Operating voltage 10…30 VDC, Max. range 20000 mm, M12 × 1 male connector, 4-pin, Protection classes IP67/IP69K, Ambient temperature: -40 °C…+70 °C, Selectable light/dark operation or light operation with alarm function, Operating voltage: 10…30 VDC, PNP switching output, changeover

  • SKU
    0662488370633
  • Manufacturer code
    3037063
  • Setting procedure
    Other
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP
  • Type of switch function
    Programmable/configurable
  • Width sensor
    30 mm
  • Height of sensor
    54 mm
  • Length of sensor
    30 mm
  • Sensing mode
    Light switching
    Light-/dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Response time
    3 s
  • Switching frequency
    160 Hz
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    20000 mm
  • Max. switching distance
    20000 mm
  • Diameter sensor
    18 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Type of switching output
    PNP
  • Connector gender
    male

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-42625-c551bc186311bd4234b466451364464a.pdf (PDF, 453.87 kB)
