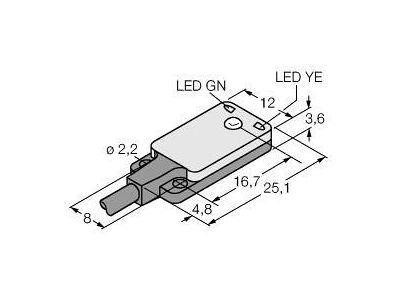

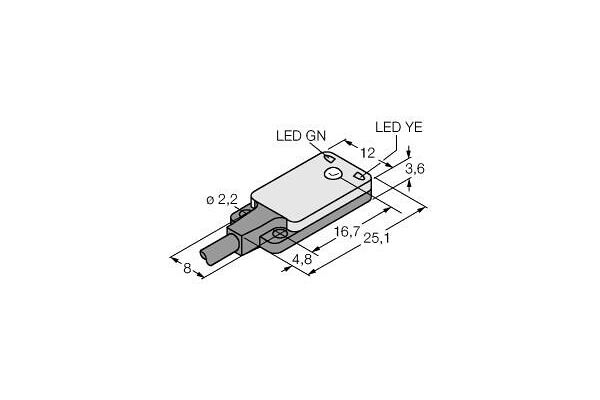

VS25EVQ5 Photoelectric Sensor, Opposed Mode Sensor (Emitter), Miniature Sensor

VS25EVQ5

Photoelectric Sensor, Opposed Mode Sensor (Emitter), Miniature Sensor, Operating voltage 10…30 VDC, Max. range 1200 mm, Cable length 0.15 m, Cable with male end, M12 × 1, 4-pin, PVC, 150 mm, Operating voltage: 10…30 VDC, Ultra flat design

  • SKU
    0662488669447
  • Manufacturer code
    3066944
  • Type of electric connection
    Connector M12
  • Construction type housing
    Cuboid
  • Width sensor
    12 mm
  • Height of sensor
    25.1 mm
  • Length of sensor
    4.7 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 55 °C
  • Response time
    1 s
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    1200 mm
  • Max. switching distance
    1200 mm
  • Wavelength of the sensor
    660 nm
  • Type of light
    Polarity free red light
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Connector gender
    male
  • Cable length (m)
    0.15

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-34059-cd3a2039629a98772bb792ecf79fb10a.pdf (PDF, 145.8 kB)
