Name: TipTeh d.o.o.
Address: Ulica Ivana Roba 23, Ljubljana, 1000, SI
Telephone: +38612005150
Price range: €€

Operating range limit: 0 ... 10 m; Supply voltage: 10 ... 36 V, DC; Digital switching outputs: 1 Piece(s); Switching output 1: Transistor, PNP, Light switching; Switching frequency: 1,000 Hz; Connection: Cable, 2,000 mm, 3 -wire; Design, housing: Cylindrical; Thread size: M12; Dimensions: 12 mm x 51 mm; Housing material: Metal; Ambient temperature, operation: -25 ... 55 °C; Degree of protection: IP 67

SKU

2110-50140154
Manufacturer code

50140154
Scope of delivery of the one-way system

Receiver
Pre failure notice

false
With time function

false
Max. output current

200 A
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of semiconductor outputs with signalling function

1
Number of protected semiconductor outputs

0
Number of protected contact energized outputs

0
Type of electric connection

Cable
Type of switching output

PNP
Type of switch function

Other
Operation agent-safety class

Safety class 3
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cylinder, screw-thread
Length of sensor

51 mm
Sensing mode

Light switching
Material of optical surface

Glass
Housing material

Metal
Metal
Metal
Metal
Max. output current at protected output

0 mA
Ambient temperature

-25 - 55 °C
Response time

0.5 s
Switching frequency

1000 Hz
Switching voltage of OSSD at state "high"

0 V
Supply voltage

10 - 36 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
Laser protection class

None
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP67
Rated switching distance

10000 mm
Max. switching distance

10000 mm
Min. reflector distance

0 mm
Transmission range of the safety field

0 m
Diameter sensor

12 mm
Material of cable sheath

Polyvinyl chloride (PVC)
Supplyoltage (V)

10 ... 36
Construction type housing

Cylindrical
Switching frequency (Hz)

1000
Ambient temperature, operation (°C)

-25 ... 55
Operating range limit (m)

0 ... 10

Manufacturer Leuze
Need our help?

or call us at

An inquiry about LE412B/4

Please enter your inquiry below and we'll get back to you as soon as possible.

Company

Your name

E-mail

Phone number

Message

Product attachments

DS_LE412B-4_eng_50140154 (LINK)

Cart

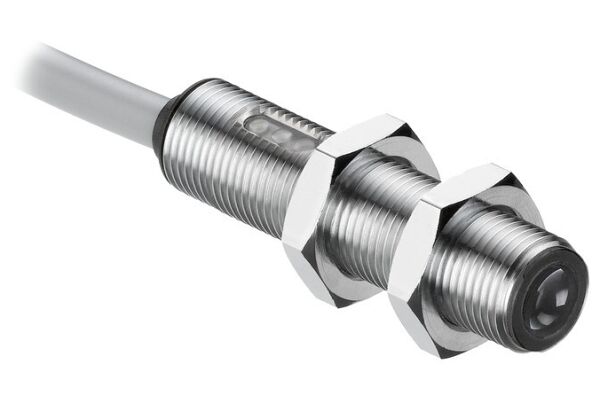

LE412B/4 Throughbeam photoelectric sensor receiver
