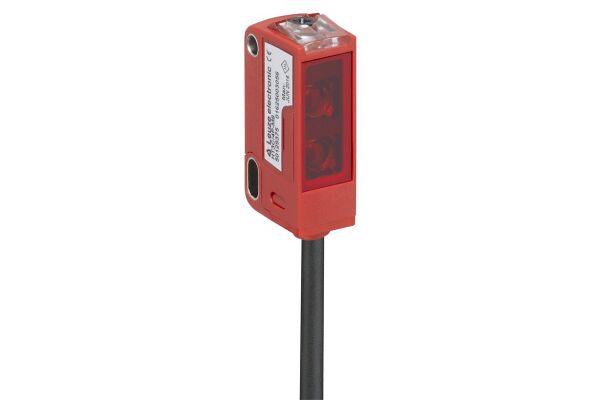

Compact throughbeam photoelectric sensor receiver with versatile switching outputs and robust design.

SKU

2110-50137204
Manufacturer code

50137204
Scope of delivery of the one-way system

Receiver
Pre failure notice

false
With time function

false
Max. output current

100 A
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
Setting procedure

Manual adjustment
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of semiconductor outputs with signalling function

2
Number of protected semiconductor outputs

0
Number of protected contact energized outputs

0
Type of electric connection

Cable
Type of switching output

Other
Type of switch function

Anticoincidence
Operation agent-safety class

Safety class 3
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Width sensor

11.4 mm
Height of sensor

34.2 mm
Length of sensor

18.3 mm
Sensing mode

Light-/dark switching
Material of optical surface

Plastic
Housing material

Plastic
Plastic
Plastic
Plastic
Max. output current at protected output

0 mA
Ambient temperature

-40 - 60 °C
Response time

0.16 s
Switching frequency

3000 Hz
Switching voltage of OSSD at state "high"

0 V
Supply voltage

10 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
Laser protection class

None
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

Other
Rated switching distance

5000 mm
Max. switching distance

10000 mm
Min. reflector distance

0 mm
Transmission range of the safety field

0 m
Material of cable sheath

Polyurethane (PUR)
Supplyoltage (V)

10 ... 30
Construction type housing

Cubic
Switching frequency (Hz)

3000
Ambient temperature, operation (°C)

-40 ... 60
Operational controls

270° potentiometer
Operating range limit (m)

0 ... 10

Manufacturer Leuze
