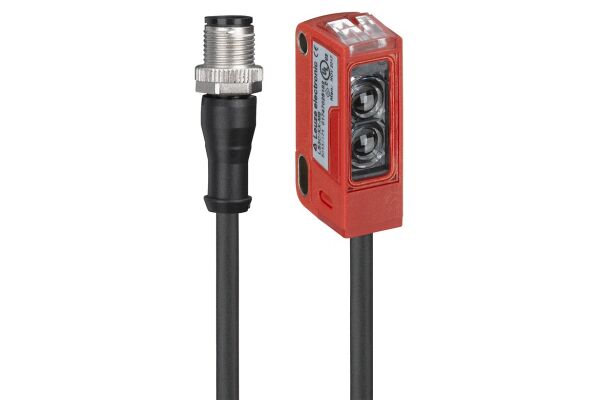

Throughbeam photoelectric sensor transmitter with a compact cubic design.

SKU

2110-50137178
Manufacturer code

50137178
Scope of delivery of the one-way system

Transmitter
Pre failure notice

false
With time function

false
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of protected semiconductor outputs

0
Number of protected contact energized outputs

0
Type of electric connection

Cable with connector
Type of switch function

Other
Operation agent-safety class

Safety class 3
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Width sensor

11.4 mm
Height of sensor

34.2 mm
Length of sensor

18.3 mm
Material of optical surface

Plastic
Housing material

Plastic
Plastic
Plastic
Plastic
Max. output current at protected output

0 mA
Ambient temperature

-40 - 60 °C
Switching voltage of OSSD at state "high"

0 V
Supply voltage

10 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
Laser protection class

None
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

Other
Rated switching distance

8500 mm
Max. switching distance

10000 mm
Min. reflector distance

50 mm
Transmission range of the safety field

0.05 m
Wavelength of the sensor

632 nm
Type of light

Polarity free red light
Material of cable sheath

Polyurethane (PUR)
Supplyoltage (V)

10 ... 30
Construction type housing

Cubic
Ambient temperature, operation (°C)

-40 ... 60
Operating range limit (m)

0.05 ... 10
Most suitable applications

Ideal for environments requiring high protection against dust and water. Suitable for operations in extreme temperatures.
