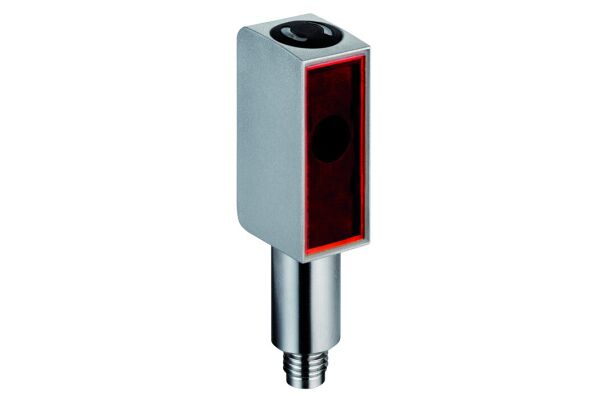

Throughbeam photoelectric sensor receiver with a special HYGIENE design.

SKU

2110-50108742
Manufacturer code

50108742
Scope of delivery of the one-way system

Receiver
Pre failure notice

false
With time function

false
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of semiconductor outputs with signalling function

2
Number of protected semiconductor outputs

0
Number of protected contact energized outputs

0
Type of electric connection

Connector M8
Type of switching output

Other
Type of switch function

Anticoincidence
Operation agent-safety class

Safety class 3
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Width sensor

14 mm
Height of sensor

35.6 mm
Length of sensor

20.3 mm
Sensing mode

Light-/dark switching
Material of optical surface

Plastic
Housing material

Metal
Stainless steel
Max. output current at protected output

0 mA
Ambient temperature

-30 - 55 °C
Response time

0.5 s
Switching frequency

1000 Hz
Switching voltage of OSSD at state "high"

0 V
Supply voltage

10 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
Laser protection class

None
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP67
Rated switching distance

8500 mm
Max. switching distance

10000 mm
Min. reflector distance

0 mm
Transmission range of the safety field

0 m
Special version

HYGIENE design
Supplyoltage (V)

10 ... 30
Construction type housing

Cubic
Switching frequency (Hz)

1000
Ambient temperature, operation (°C)

-30 ... 55
Operating range limit (m)

0 ... 10

Manufacturer Leuze
Need our help?

or call us at

An inquiry about LSER 53/66-S8

Please enter your inquiry below and we'll get back to you as soon as possible.

Company

Your name

E-mail

Phone number

Message

Product attachments

DS_LSR53_en_P.pdf (LINK)

Cart

LSER 53/66-S8 Throughbeam photoelectric sensor receiver

Need our help?

An inquiry about LSER 53/66-S8

Product attachments

Cookie?

We use the following cookies:

LSER 53/66-S8 Throughbeam photoelectric sensor receiver

Need our help?

An inquiry about LSER 53/66-S8

Product attachments

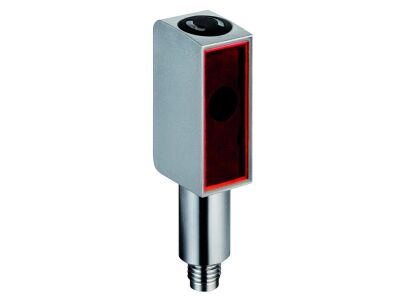

LSSR 53.8-S8 Throughbeam photoelectric sensor transmitter
