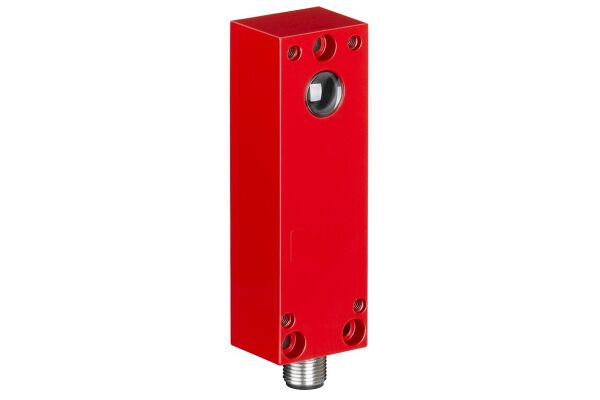

LSRL 64/2.8 SE-L Throughbeam photoelectric sensor transmitter

LSRL 64/2.8 SE-L
Throughbeam photoelectric sensor transmitter with an activation input and a laser light source.
  • SKU
    2110-50080151
  • Manufacturer code
    50080151
  • Scope of delivery of the one-way system
    Transmitter
  • Pre failure notice
    false
  • With time function
    false
  • With reflector
    false
  • Analogue output 0 V ... 10 V
    false
  • Analogue output 0 mA ... 20 mA
    false
  • Analogue output 4 mA ... 20 mA
    false
  • Analogue output -10 V ... +10 V
    false
  • With other analogue output
    false
  • With communication interface analogue
    false
  • With communication interface AS-Interface
    false
  • With communication interface CANOpen
    false
  • With communication interface DeviceNet
    false
  • With communication interface Ethernet
    false
  • With communication interface INTERBUS
    false
  • With communication interface PROFIBUS
    false
  • With communication interface RS-232
    false
  • With communication interface RS-422
    false
  • With communication interface RS-485
    false
  • With communication interface SSD
    false
  • With communication interface SSI
    false
  • Number of protected semiconductor outputs
    0
  • Number of protected contact energized outputs
    0
  • Type of electric connection
    Connector M12
  • Type of switch function
    Other
  • Operation agent-safety class
    Safety class 1
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Construction type housing
    Cuboid
  • Width sensor
    30 mm
  • Height of sensor
    90 mm
  • Length of sensor
    28.5 mm
  • Material of optical surface
    Glass
  • Housing material
    Metal
    Metal
    Metal
    Metal
  • Max. output current at protected output
    0 mA
  • Ambient temperature
    -20 - 40 °C
  • Switching voltage of OSSD at state "high"
    0 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • Laser protection class
    Class 2
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP65
  • Rated switching distance
    120000 mm
  • Max. switching distance
    150000 mm
  • Min. reflector distance
    0 mm
  • Transmission range of the safety field
    0 m
  • Wavelength of the sensor
    655 nm
  • Type of light
    Laser diode, red light
  • Special version
    Activation input
  • Supplyoltage (V)
    24
  • Construction type housing
    Cubic
  • Ambient temperature, operation (°C)
    -20 ... 40
  • Operating range limit (m)
    0 ... 150
  • Manufacturer Leuze

Product attachments

DS_LSRL64_48L_en_50113310 (LINK)
