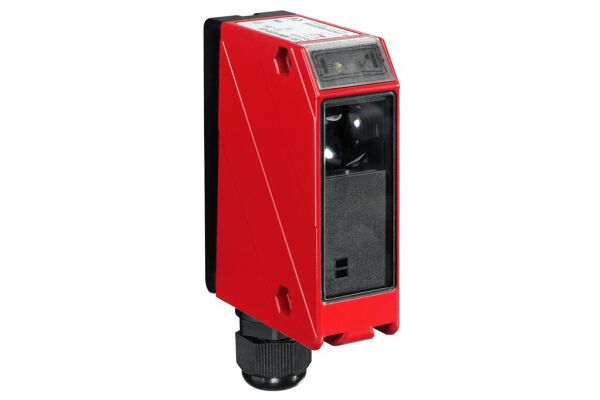

Compact throughbeam photoelectric sensor transmitter with a wide operating range and durable metal housing.

SKU

2110-50032004
Manufacturer code

50032004
Scope of delivery of the one-way system

Transmitter
Pre failure notice

false
With time function

false
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of protected semiconductor outputs

0
Number of protected contact energized outputs

0
Type of electric connection

Clamp
Type of switch function

Other
Operation agent-safety class

Safety class 2
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Width sensor

30 mm
Height of sensor

90 mm
Length of sensor

70 mm
Material of optical surface

Glass
Housing material

Metal
Metal
Metal
Metal
Max. output current at protected output

0 mA
Ambient temperature

-40 - 55 °C
Switching voltage of OSSD at state "high"

0 V
Voltage type

DC
AC/DC
With monitoring function downstream switching devices

false
Laser protection class

None
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP67
Rated switching distance

30000 mm
Max. switching distance

39000 mm
Min. reflector distance

0 mm
Transmission range of the safety field

0 m
Wavelength of the sensor

0 nm
Type of light

Polarity free red light
Rated control supply voltage AC 50 Hz

20 - 230 V
Rated control supply voltage AC 60 Hz

20 - 230 V
Supplyoltage (V)

20 ... 230
Construction type housing

Cubic
Ambient temperature, operation (°C)

-40 ... 55
Operating range limit (m)

0 ... 39

Manufacturer Leuze
